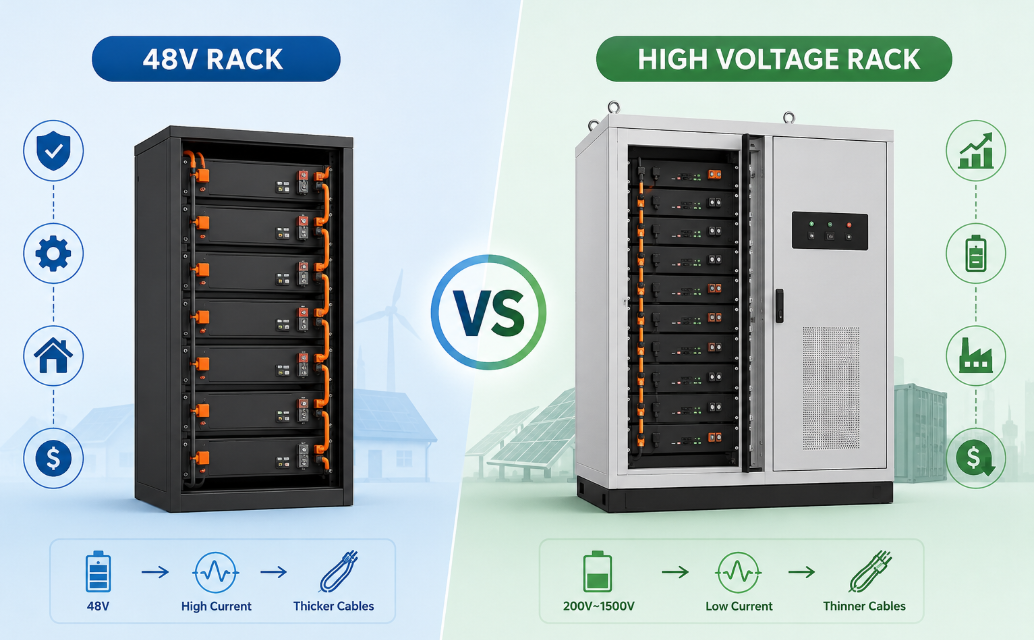

High Voltage Battery Rack vs 48V Rack: What’s the Difference?

The key difference between a high voltage battery rack and a 48V rack battery system lies in system architecture and efficiency. 48V racks operate at low-voltage (around 48–51.2V) and rely on higher current, making them simpler and safer but less efficient for large-scale energy storage. High voltage racks (typically 100V–1500V DC depending on design) use series-connected modules to reduce current, improve efficiency, lower cabling cost, and better support commercial and utility-scale ESS applications.

1. Understanding Battery Rack Architectures in Modern ESS

A battery rack is the core modular building block of a Battery Energy Storage System (BESS). It integrates battery modules, a Battery Management System (BMS), protection devices, and communication interfaces into a standardized rack structure.

According to industry definitions, modern ESS racks are no longer just “battery holders”—they are active energy management units that determine system efficiency, scalability, and safety performance .

In today’s market, two dominant architectures exist:

· 48V (low-voltage) rack systems

· High-voltage rack systems (HV ESS racks)

These two architectures serve different applications, cost structures, and performance expectations.

2. What is a 48V Battery Rack System?

A 48V rack battery system typically operates at 48V or 51.2V nominal voltage. It is built using lithium iron phosphate (LiFePO₄) cells connected in series and parallel to achieve a standardized low-voltage platform.

Typical applications include:

· Residential solar storage

· Telecom base stations

· Small UPS backup systems

· Entry-level commercial ESS

Key characteristics:

· Voltage range: ~48V–51.2V

· Simple system integration

· High safety for installation and maintenance

· Easy modular expansion (parallel connection)

However, 48V systems require high current to deliver high power output. This leads to:

· Larger cable sizes

· Higher resistive losses (I²R loss)

· More parallel battery strings

· Reduced efficiency at scale

Industry comparisons show that 48V systems typically reach around 85–94% efficiency depending on system design and chemistry .

3. What is a High Voltage Battery Rack System?

A high voltage (HV) battery rack system connects multiple battery modules in series to significantly increase DC voltage—often ranging from 100V up to 1500V in commercial and utility ESS designs.

Instead of increasing current, HV systems increase voltage, which reduces current for the same power output.

Core benefits:

· Lower current flow

· Reduced heat generation

· Smaller cable diameter

· Higher system efficiency

· Better compatibility with modern PCS (power conversion systems)

High-voltage rack systems are widely used in:

· Commercial & industrial ESS (C&I)

· Grid-scale storage

· Microgrids

· Large solar + storage projects

HV rack systems are now considered the preferred architecture for scalable energy storage infrastructure, especially where efficiency and lifecycle cost matter.

4. 48V vs High Voltage Battery Rack: Technical Comparison

5. Why Voltage Matters: The Physics Behind the Difference

The difference between 48V and high voltage systems is fundamentally driven by Ohm’s Law (P = V × I).

For the same power output:

· Low voltage (48V) → higher current

· High voltage → lower current

Since resistive loss is proportional to I²R, even small reductions in current lead to significant efficiency gains.

That is why modern HV ESS designs focus heavily on increasing voltage instead of increasing parallel current paths.

6. Efficiency, Cost, and Installation Impact

1. Efficiency Advantage of HV Systems

High voltage systems reduce:

· Heat losses

· Energy dissipation in cables

· Conversion inefficiencies

This is critical for large-scale ESS where even 2–3% efficiency gain translates into significant lifetime savings.

2. Installation Cost

· 48V systems: lower initial system complexity

· HV systems: higher upfront engineering requirements but lower long-term BOS (Balance of System) cost

3. Maintenance

· 48V: easier for field technicians

· HV: requires certified handling procedures

7. Safety Considerations

Safety is one of the main reasons 48V systems remain popular.

· 48V is often considered “safe low voltage” in many applications.

· High voltage systems require:

o Arc protection

o Insulation monitoring

o High-standard BMS protection

o Strict compliance with IEC and UL standards

Modern HV ESS systems mitigate risks using:

· Advanced Battery Management Systems (BMS)

· Thermal runaway protection

· Automatic fault isolation

· Multi-layer electrical protection design

8. Industry Trend: Why the Market is Moving Toward High Voltage

Across the global ESS industry, there is a clear shift toward high-voltage architecture.

Key drivers:

· Rapid growth of utility-scale solar + storage

· EV charging infrastructure demand

· Grid stabilization requirements

· Higher efficiency expectations

Even many “48V rack systems” today are evolving toward 51.2V and hybrid HV-ready architectures, bridging the gap between residential and commercial systems.

9. Solareast BESS Solution: Bridging Both Architectures

As a global energy storage manufacturer, Solareast develops modular battery storage systems designed for both 48V rack applications and high-voltage scalable ESS architectures.

Key advantages of Solareast systems:

· Modular rack design for flexible scaling

· Advanced BMS for real-time safety control

· Liquid/air cooling options for different project sizes

· Compatibility with C&I and renewable hybrid systems

· Global certifications supporting international deployment

Solareast focuses on delivering commercial and industrial energy storage systems that balance safety, scalability, and lifecycle efficiency, helping customers transition from small 48V setups to advanced HV ESS architectures.

10. Which One Should You Choose?

Choose 48V Battery Rack if:

· You need residential or small backup storage

· Safety and simplicity are top priorities

· System size is below ~20–30kWh

Choose High Voltage Battery Rack if:

· You are designing C&I or utility-scale ESS

· Efficiency and long-term ROI matter most

· You need scalable multi-rack expansion

· You are integrating solar farms or microgrids

Conclusion

The difference between high voltage battery racks and 48V rack systems is not just about voltage—it is about system philosophy.

· 48V = simplicity, safety, small-scale flexibility

· High voltage = efficiency, scalability, industrial performance

As global energy storage continues to scale, high voltage architectures are becoming the backbone of modern BESS infrastructure, while 48V systems remain essential for distributed and residential applications.

For businesses planning future-ready energy storage projects, solutions like those from Solareast BESS provide a scalable pathway from low-voltage modular systems to fully integrated high-voltage energy storage platforms.
