Product Features and Advantages
High Safety
Selection of lithium iron phosphate cells with high thermal stability.
Overall elastic constraint to reduce the impact of cell expansion.
Long Lifespan
Equipped with advanced batteries from top-tier battery suppliers, the cells have a maximum cycle life of up to 8000 cycles.
The design of air channels between cells effectively controls heat accumulation and thermal runaway, ensuring cell stability and reliability.
Standardization
Standardization of manufacturing processes to ensure stability and efficiency in production, improving product quality and reducing production costs.

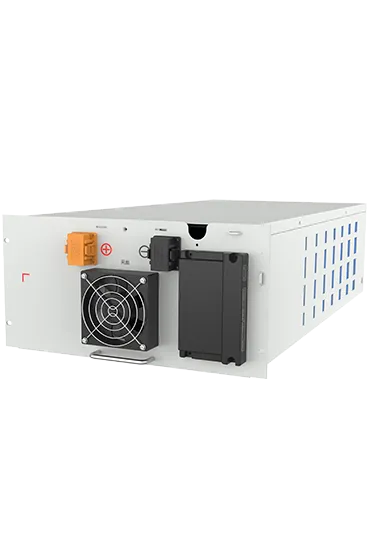

Technical Specifications
280Ah LFP
Specifications
| Model | SE-BP-280A-1P16S | SE-BP-280A-1P20S |
| Cell Capacity&Type | 280Ah LFP | 280Ah LFP |
| Group configuration | 1P16S | 1P20S |
| Nominal Voltage | 51.2V | 64V |
| Nominal capacity | 14.336kWh(@25°C±2) | 17.92kWh(@25°C±2) |
| Efficiency | ≥94% | ≥94% |
| Max. constant charging/discharging power | 0.5P | 0.5P |
| Nominal charging/discharging current | 140A | 140A |
| Range of operating voltage | 43.2V~57.6V | 54V~72V |
| Max. range of working temperature | Charging: 0℃~55℃ Discharging: -30℃~55℃ | Charging: 0℃~55℃ Discharging: -30℃~55℃ |
| IP rating | IP20 | IP20 |
| Cooling method | Air cooling | Air cooling |
| Weight | 114kg | 140kg |
| Dimension(W*D*H) | 483mm×814mm×235mm | 483mm×970mm×235mm |
| Fire safety configuration | Aerosol | Aerosol |
| Cycle Life | 8000 | 8000 |
Product Application
Residential Solar+: 3-day backup for average households
Commercial Peak Shaving: 30% demand charge reduction
Telecom Towers: Off-grid operation up to 2-3 days
EV Charging Hubs: Buffer 10+ fast charges daily
Microgrid Nodes: Plug-and-play grid support
