Liquid-Cooling Energy Storage System
UN38.3
IEC61000 IEC62477
IEC62619IEC63056
Product Features and Advantages
Scan the code for charging
Emergency energy replenishment
Low-speed autonomous driving
5G cloud driving
Technical Specifications

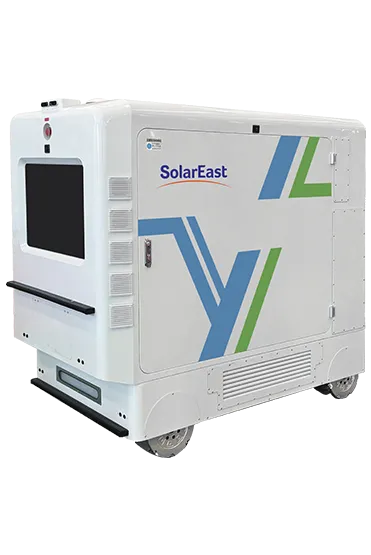

SE-CR-200 Mobile Charging Robot
AC Side
|
AC Rated Power:100kW |
|
Allowable Grid Voltage &Frequency Range:400V (-15%~10%) , 50/60Hz±2.5Hz, 3P+N+PE |
|
Max. PCS Efficiency:98% |
Battery Side
| Cell Specification:LFP 3.2V/280Ah |
| Battery RACK Configuration:1P240S |
| System Capacity:215kWh @ 25℃，0.5P |
| Voltage Range:648~864V |
System Parameter
| Charge/discharge Ratio:≤0.5P |
| Display:Touch screen display (optional) |
| Dimension(W*D*H):1000*1350*2391mm( Incl. lifting lug) |
| Weight:2400kg |
AC Side
|
AC Rated Power:100kW |
|
Allowable Grid Voltage &Frequency Range:400V (-15%~10%) , 50/60Hz±2.5Hz, 3P+N+PE |
|
Max. PCS Efficiency:98% |
Battery Side
| Cell Specification:LFP 3.2V/280Ah |
| Battery RACK Configuration:1P240S |
| System Capacity:215kWh @ 25℃，0.5P |
| Voltage Range:648~864V |
System Parameter
| Charge/discharge Ratio:≤0.5P |
| Display:Touch screen display (optional) |
| Dimension(W*D*H):1000*1350*2391mm( Incl. lifting lug) |
| Weight:2400kg |
FAQ
What role can BESS play in frequency regulation?
A.By rapidly injecting or absorbing power, BESS can help maintain the grid’s frequency close to its nominal value (e.g., 50 Hz or 60 Hz). When there’s a mismatch between supply and demand, BESS can quickly respond to stabilize frequency.
What is a Battery Energy Storage System (BESS)?
A.A.Battery energy storage system (BESS) is a technology that uses lithium-ion batteries as the core to achieve efficient storage and release of electrical energy through battery packs, management systems, and power conversion devices. It is mainly applied in power grid peak shaving, renewable energy integration, and distributed energy management, and has the characteristics of high energy density, fast response, and long cycle life.
How is BESS used for renewable energy integration?
A.In solar and wind installations, BESS stores excess energy during periods of high generation, then releases that stored energy during low generation or peak demand. This application helps stabilize output and reduces curtailment (wasting potential generation).
Why are BESS solutions important for modern energy grids?
A.Modern energy grids increasingly depend on variable renewable sources, like solar and wind. This variability means supply does not always match demand. A BESS smooths power output, provides backup power during outages, and helps maintain grid frequency and voltage. This reliability benefit is crucial for power quality and grid stability.
What are the disadvantages of BESS?
A.• Longer Charge/Discharge Time: Compared to technologies like supercapacitors, BESS typically needs more time for fully charging or discharging.
• Limited Cycle Life: Batteries degrade over thousands of cycles, especially if operated in harsh conditions.
• Higher Cost per Cycle: Repeated charging and discharging eventually requires battery replacement, impacting lifecycle costs.
Your One-Stop Energy Solution Provider
SolarEast is a trusted provider of comprehensive energy solutions, delivering customized battery energy storage systems for industrial and commercial clients. Whether it’s energy management, cost optimization, or renewable energy integration, we offer professional expertise and tailored services to meet your diverse needs.
With SolarEast, you can benefit from:
One-Stop Service
Full support from needs assessment and system design to installation and maintenance
Efficient Storage Solutions
Lower energy costs and enhance energy utilization
Smart Management
Enable peak shaving, load shifting, and backup power functionalities
Renewable Integration
Seamlessly integrate solar, wind, and other renewable energy sources for a sustainable future
