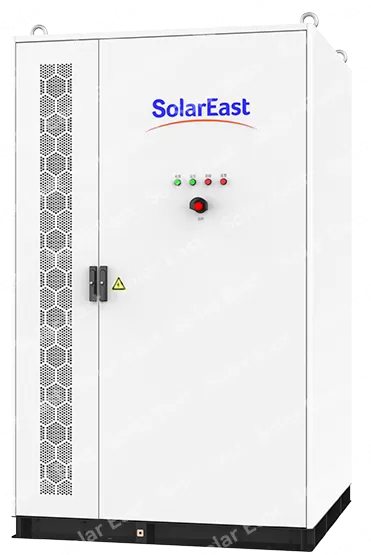

Liquid-cooling Energy Storage Cabinet
Liquid cooled outdoor energy storage cabinets feature efficientthermal management, which extends battery life, and a five-levelsafety design. Moreover, this product ensures reliable power supplyfor different commercial and industrial (assuming “C&L" refers tocommercial and industrial) energy storage applications.
UN38.3
IEC61000 IEC62477
IEC62619 IEC63056
Product Features and Advantages
High Security
Battery circuit safety management, fast fuse protection.
A multi-level battery protection system ensuring impeccable safety. Intelligent anti-leakage detection,enhancing system safety.
Long Lifespan
Intelligent liquid cooling ensures higher efficiency and longer battery cycle life.
Modular design with parallel support for easy system expansion.
High Integration
Highly integrated, easy to transport and operation and maintenance. Fully pre-assembled, eliminating the need for on-site battery module installation.
On-site installation within 8 hours.
Intelligent
Real-time status monitoring and fault recording to achieve fault warning and fault location.
Built-in battery performance monitoring and recording function.
Technical Specifications
SE418L-215K
AC Side
| AC Rated Power: 215kW/418kWh Energy Storage Cabinet |
| Allowable Grid Voltage &Frequency Range: 400V (-15%~10%) , 50/60Hz±2.5Hz, 3P+PE |
| Max. PCS Efficiency: 98% |
Battery Side
| Cell Specification: LFP 3.2V/314Ah |
| Battery RACK Configuration: 1P416S |
| System Capacity: 417.996kWh @ 25℃，0.5P |
| Voltage Range: 1123.2-1497.6V |
System Parameter
| Charge/discharge Ratio: ≤0.5P |
| Display: Touch screen display (optional) |
Dimension(W*D*H): 1300*1350*2500mm |
| Weight: 3700kg |
| IP rating: IP54（Pack：IP67） |
| System Efficiency: ≥88% |
| Cooling method: Liquid cooling |
| Environmental Temperature: -30~55 ℃ |
| Fire safety configuration: Aerosol |
| Compliant with standards: GB/T 34120，GB/T 36276，IEC62477，IEC62619，IEC63056 |
| Cycle Life: 8000 |
Product Application
Industrial Parks - Save electricity bills
Solar+Storage+Charging Stations - Tri-integrated system boosts green energy utilization by 60%
Data Centers - Uninterrupted power supply reduces PUE by 0.3+
Telecom Base Stations - Stable operation in -40°C extreme cold
Offshore/Oilfield - Corrosion-resistant design for harsh environments
Smart BMS+EMS dual-system coordination enables remote O&M and AI energy optimization.

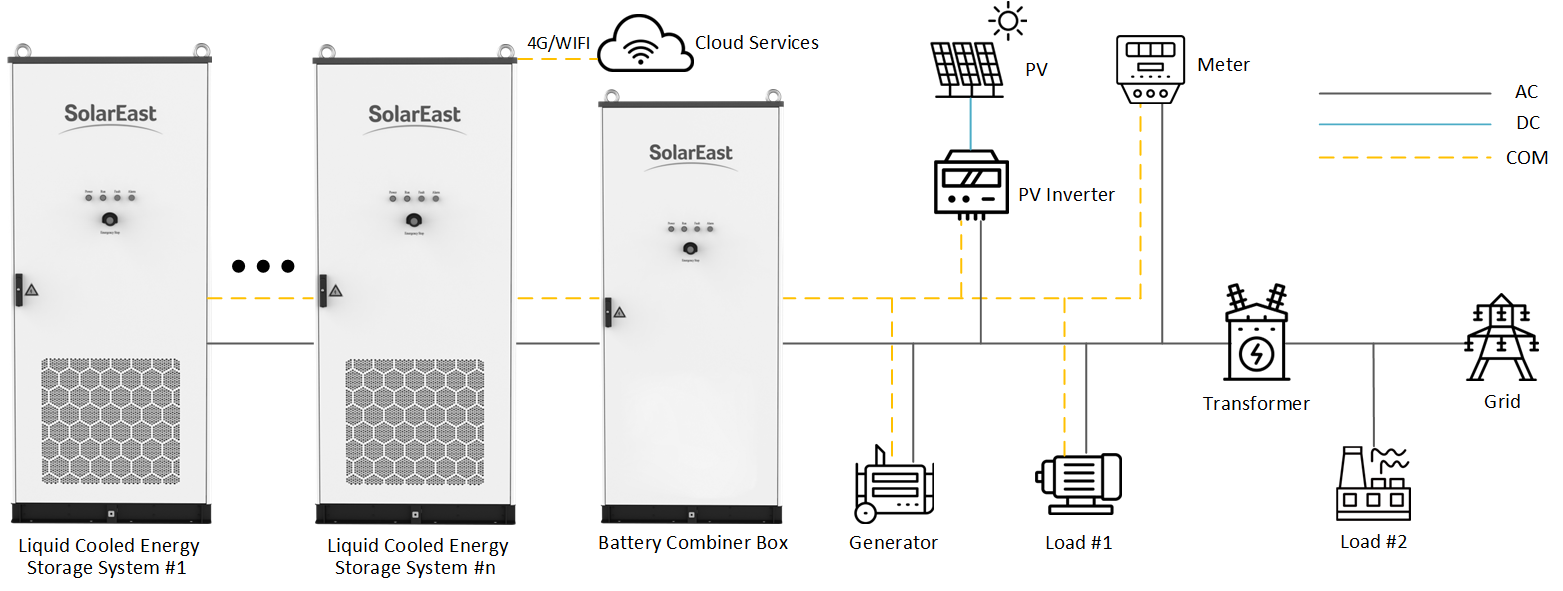

Product Solution
FAQ
What are the typical applications where supercapacitors might outperform BESS?
A.The core advantages of supercapacitors lie in their fast charging and discharging capabilities (completed in seconds), ultra long cycle life (over hundreds of thousands of cycles), wide temperature adaptability, and high safety (no chemical leakage risk). These characteristics make it significantly superior to traditional BESS in applications that require instantaneous power support, frequent charging and discharging, or extreme environments.
What is a Battery Energy Storage System (BESS)?
A.A.Battery energy storage system (BESS) is a technology that uses lithium-ion batteries as the core to achieve efficient storage and release of electrical energy through battery packs, management systems, and power conversion devices. It is mainly applied in power grid peak shaving, renewable energy integration, and distributed energy management, and has the characteristics of high energy density, fast response, and long cycle life.
How do BESS compare to supercapacitors?
A.• Energy Density vs. Power Density: BESS offer higher energy density (store more energy per unit volume), while supercapacitors excel at delivering high power quickly.
• Cycle Life: Supercapacitors have a very long cycle life; batteries degrade more quickly over repeated cycles.
• Duration of Discharge: BESS is well-suited for longer-duration applications (minutes to hours), whereas supercapacitors are ideal for short, high-power bursts (seconds to minutes).
Why are BESS solutions important for modern energy grids?
A.Modern energy grids increasingly depend on variable renewable sources, like solar and wind. This variability means supply does not always match demand. A BESS smooths power output, provides backup power during outages, and helps maintain grid frequency and voltage. This reliability benefit is crucial for power quality and grid stability.
What are the main advantages of BESS?
A.• High Energy Density: BESS can store large amounts of energy in relatively small footprints.
• Long-Duration Storage: They can provide power for hours, making them suitable for load shifting, peak shaving, or time-of-use management.
• Established Technology: Lithium-ion and related chemistries are mature, widely available, and backed by extensive industry experience.
• Versatility: BESS can serve multiple roles, from residential backup to utility-scale support.
