Liquid-cooling Energy Storage Cabinet
Liquid cooled outdoor energy storage cabinets feature efficientthermal management, which extends battery life, and a five-levelsafety design. Moreover, this product ensures reliable power supplyfor different commercial and industrial (assuming “C&L" refers tocommercial and industrial) Battery Energy Storage System applications.
UN38.3
IEC61000 IEC62477
IEC62619 IEC63056
Product Features and Advantages
Large Capacity and High Power
With a nominal capacity of 241.15kWh/1P240S and a rated power of 125KW, it can provide efficient charging and discharging capabilities in a short period of time to meet a wide range of power needs.
Efficient Heat Dissipation
Adopting Liquid-cooled heat dissipation ensures that the equipment maintains a good working temperature during high load operation, prolonging the life of the equipment and improving the operating efficiency.
High Integration
Highly integrated, easy to transport and operation and maintenance. Fully pre-assembled, eliminating the need for on-site battery module installation.
On-site installation within 8 hours.
Strong Adaptability
The working temperature range is from -30℃ to 55℃, which can operate normally under various harsh environmental conditions without condensation, and has a wide adaptability range.
Technical Specifications
SE241L-125K
AC Side
| AC Rated Power: 125kW/241kWh Energy Storage Cabinet |
| Allowable Grid Voltage &Frequency Range: 400V (-15%~10%) , 50/60Hz±2.5Hz, 3P+N+PE |
| Max. PCS Efficiency: 98% |
Battery Side
| Cell Specification: LFP 3.2V/314Ah |
| Battery RACK Configuration: 1P240S |
| System Capacity: 215kWh @ 25℃，0.5P |
| Voltage Range: 648~864V |
System Parameter
| Charge/discharge Ratio: ≤0.5P |
| Display: Touch screen display (optional) |
Dimension(W*D*H): 1000*1350*2300mm |
| Weight: 2450kg |
| IP rating: IP54（Pack：IP67） |
| System Efficiency: >88% |
| Cooling method: Liquid cooling |
| Environmental Temperature: -30~55 ℃ |
| Fire safety configuration: Aerosol |
| Compliant with standards: GB/T 34120，GB/T 36276，IEC62477，IEC62619，IEC63056 |
| Cycle Life: 8000 |
Product Application
Industrial energy storage, factories, mines, commercial energy storage, shopping malls, hotels.
Solar+Storage+Charging Stations - Tri-integrated system boosts green energy utilization by 60%
Data Centers - Uninterrupted power supply reduces PUE by 0.3+
Telecom Base Stations - Stable operation in -40°C extreme cold
Offshore/Oilfield - Corrosion-resistant design for harsh environments
Smart BMS+EMS dual-system coordination enables remote O&M and AI energy optimization.

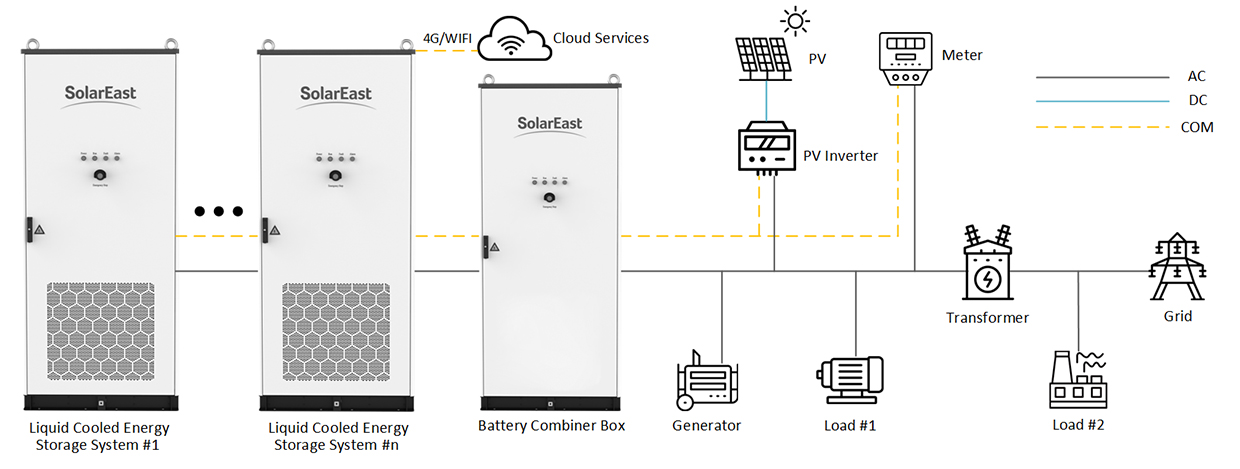

Product Solution
FAQ
What role can BESS play in frequency regulation?
A.By rapidly injecting or absorbing power, BESS can help maintain the grid’s frequency close to its nominal value (e.g., 50 Hz or 60 Hz). When there’s a mismatch between supply and demand, BESS can quickly respond to stabilize frequency.
What is a Battery Energy Storage System (BESS)?
A.A.Battery energy storage system (BESS) is a technology that uses lithium-ion batteries as the core to achieve efficient storage and release of electrical energy through battery packs, management systems, and power conversion devices. It is mainly applied in power grid peak shaving, renewable energy integration, and distributed energy management, and has the characteristics of high energy density, fast response, and long cycle life.
Why are BESS solutions important for modern energy grids?
A.Modern energy grids increasingly depend on variable renewable sources, like solar and wind. This variability means supply does not always match demand. A BESS smooths power output, provides backup power during outages, and helps maintain grid frequency and voltage. This reliability benefit is crucial for power quality and grid stability.
What are the main advantages of BESS?
A.• High Energy Density: BESS can store large amounts of energy in relatively small footprints.
• Long-Duration Storage: They can provide power for hours, making them suitable for load shifting, peak shaving, or time-of-use management.
• Established Technology: Lithium-ion and related chemistries are mature, widely available, and backed by extensive industry experience.
• Versatility: BESS can serve multiple roles, from residential backup to utility-scale support.
How do BESS compare to supercapacitors?
A.• Energy Density vs. Power Density: BESS offer higher energy density (store more energy per unit volume), while supercapacitors excel at delivering high power quickly.
• Cycle Life: Supercapacitors have a very long cycle life; batteries degrade more quickly over repeated cycles.
• Duration of Discharge: BESS is well-suited for longer-duration applications (minutes to hours), whereas supercapacitors are ideal for short, high-power bursts (seconds to minutes).
