Professional Battery Energy Storage Systems Manufacturer
We utilize EVE's safe and reliable LiFePO4 cells, which are 100% brand-new Grade A with original labels and factory QR codes, sourced directly from EVE's factory. Additionally, we collaborate with other leading battery cell brands including REPT BATTERO and Hithium.
Seamless Integration: Compatible with leading inverter brands including Goodwe, Deye, Growatt, and Sofar, ensuring a smooth and efficient setup with your existing solar power infrastructure.
Support: Wholesale, OEM, ODM, Custom 30kWh to 60kWh Energy Storage System
Delivery Time: 7-14 days for samples, 35-60days for mass production
UN38.3
Product Features and Advantages
Perfect for Large Industrial
Simplifies adding energy storage to small commercial buildings. Native output simplifies installation removing the need for bulky step-down transformers.
AC/DC Coupling Capability
Enabling seamless integration with existing grid-tied PV systems. Allows for efficient DC coupling using the integrated 4x channel MPPT charge controller.

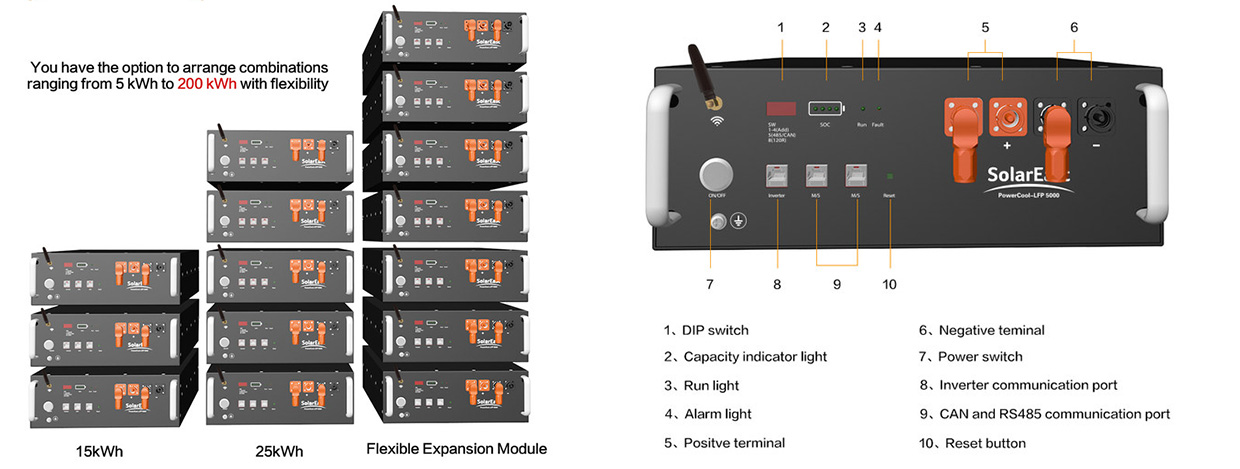

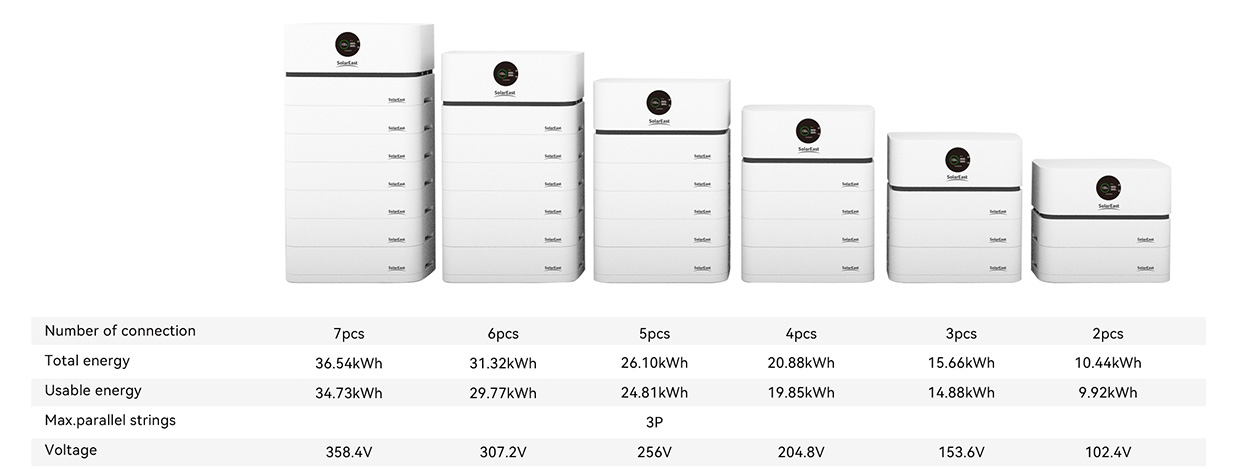

Modular & Scalable Energy
Modular and flexible design allowing for easy installation and expansion. Accommodates a range of system sizes with outputs starting from 30kW going to 300kW.
Seamless Backup Power
Helps met your corporate renewable energy goals and decarbonization efforts. Blazing fast 5ms transfer time with 200A grid relay allows for business continuity during grid outages.
Technical Specifications
SE100A-30K.40K.50K.60K
PV
| Maximum input power: 65kW |
| maximum input voltage: 1000V |
| MPPT operating voltage range/Rated voltage: 180-850V/600V |
| Maximum input current: 36/36/36A |
| maximum short circuit current: 55/55/55/55/55/55A |
MPPT quantity: 2 |
| MPPT input string count: 6/6 |
Battery Side
| Cell Specification: LFP 3.2V/280Ah |
| System Capacity: 30kWh |
| Cycle Life: 8000Cycles(0.5P,25+2°C,@70%SOH) |
Ac grid connection side
| Rated Power: 39kW |
| Allowable Grid Voltage Range: 400V(340-436V) |
Way of Connection: 3P+N+PE |
| Allowable Grid Frequency Range: 50/60H(45-55Hz/55-65Hz) |
Ac off-network side
| AC Rated Power: 39kW |
| Allowable Grid Voltage Range: 230V/400V |
| Way of Connection: 3P+N+PE |
| Allowable Grid Frequency Range: 50/60 |
| Off-grid switching time: ＜20ms |
System Parameter
| Dimension(W*D*H): 1200 × 2160 × 750mm |
| Weight: 860kg |
| Environmental Temperature: －20-55℃ |
| Humidity: ≤95% |
| Cooling method: Air cooling |
| Maximum working altitude: 2000m |
| Fire safety configuration: Aerosol |
| Communication Interface: Ethernet/CAN/RS485 |
| Compliant with standards: GB/T 34120，GB/T 36276， |
Product Application
Factories & Industrial Parks: Stabilize power demand and reduce downtime costs.
Solar + Storage: Maximize renewable energy use and lower carbon emissions.
EV Charging Stations & Data Centers: Ensure stable operation for high-power equipment.
Data Centers - Uninterrupted power supply reduces PUE by 0.3+
Telecom Base Stations - Stable operation in -40°C extreme cold
Offshore/Oilfield - Corrosion-resistant design for harsh environments
Smart BMS+EMS dual-system coordination enables remote O&M and AI energy optimization.
Product Solution
Limited-Time Business Offer: Bigger Orders = Bigger Rewards!
Solve the problem of staggered peaks, improve power quality and be prepared for any problems
Shaving Peaks: Centralized solutions are mostly applied to the new energy generation side,smoothing the output.
Filling Valleys: Distributed energy storage solutions are mostly used in small-scale commerciaand industrial businesses, where energy storage is configured to reduce themaximum power demand of the business at peak times, serving to reducecapacity tariffs. lt improves power quality and can also be used as a backuppower source.
Upgrade Your Energy Storage System & Unlock Exclusive Perks
Price of the 30kWh to 60kWh Air-Cooled Hybrid Energy Storage System
The price of the 50kw/100kWh Air Cooling Energy Storage Cabinet System is based on EXW (Ex Works) terms and may vary depending on the supplier, quantity, and market conditions.You may need to request a quote from a reputable energy storage system supplier to get the most accurate pricing. Please note that the final costs may vary based on fluctuations in raw material prices and exchange rates.
If you are looking for 30kWh to 60kWh Air-Cooled Hybrid Energy Storage System and want to know more about the technical information, please feel free to contact SolarEast BESS.
Our Factory
SolarEast BESS is committed to delivering quality industrial and large scale ESS facilities professional technicasupport and thoughtful customer services beyond your expectations.
Your One-Stop Energy Solution Provider
SolarEast is a trusted provider of comprehensive energy solutions. We're committed to providing prompt, professional support and delivering customized battery energy storage system solutions for industrial and commercial clients. Whether it’s energy management, cost optimization, or renewable energy integration, we offer professional expertise and tailored services to ensure your energy needs are always met with the highest level of service.
With SolarEast, you can benefit from:
One-Stop Service
Full support from needs assessment and system design to installation and maintenance
Efficient Storage Solutions
Lower energy costs and enhance energy utilization
Smart Management
Enable peak shaving, load shifting, and backup power functionalities
Renewable Integration
Seamlessly integrate solar, wind, and other renewable energy sources for a sustainable future
FREE Request a Quote! Fill out the form to connect with us and start your energy storage journey today!
