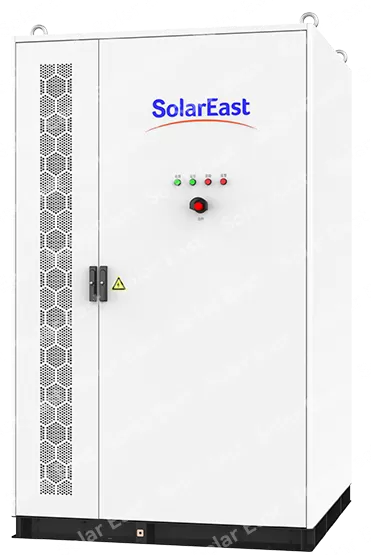

Liquid-cooling Energy Storage Cabinet
Liquid cooled outdoor energy storage cabinets feature efficientthermal management, which extends battery life, and a five-levelsafety design. Moreover, this product ensures reliable power supplyfor different commercial and industrial (assuming “C&L" refers tocommercial and industrial) energy storage applications.
UN38.3
IEC61000 IEC62477
IEC62619 IEC63056
Product Features and Advantages
Excellent Protection
Patented outdoor cabinet protection design, optimised cooling, protection against dust and rain; front and rear doors open for maintenance, facilitating side-by-side arrangement of multiple systems on site and reducing floor space.
Intelligent Management
The local control panel can realise system operation monitoring, energy management strategy formulation, equipment remote upgrade and other diversified functions.
Highly Integrated
Productised system, integrating energy storage battery, PCS and power distribution, temperature control, fire protection, flooding door magnet, and monitoring and communication, comprehensively controlling system operation status and risk.
Diverse Functions
Standardised structural design, menu-type function configuration, optional photovoltaic charging module for microgrid and other scenarios, grid switching module, industrial frequency transformer and other components, integrated optical storage integrated system cabinet.
Technical Specifications
SE418L
AC Side
| AC Rated Power: / |
| Allowable Grid Voltage &Frequency Range: / |
| Max. PCS Efficiency: 98% |
Battery Side
| Cell Specification: LFP 3.2V/314Ah |
| Battery RACK Configuration: 1P416S |
| System Capacity: 417.996kWh @ 25℃，0.5P |
| Voltage Range: 1123.2~1497.6V |
System Parameter
| Charge/discharge Ratio: ≤0.5P |
| Display: Touch screen display (optional) |
Dimension(W*D*H): 1300*1350*2300mm |
| Weight: 3600kg |
| IP rating: IP54（Pack：IP67） |
| System Efficiency: ≥88% |
| Cooling method: Liquid cooling |
| Environmental Temperature: -30~55 ℃ |
| Fire safety configuration: Aerosol |
| Compliant with standards: GB/T 34120，GB/T 36276，IEC62477，IEC62619，IEC63056 |
| Cycle Life: 8000 |
Product Application
Improve power quality, load tracking, backup power, peak shaving and valley filling.
Solar+Storage+Charging Stations - Tri-integrated system boosts green energy utilization by 60%
Data Centers - Uninterrupted power supply reduces PUE by 0.3+
Telecom Base Stations - Stable operation in -40°C extreme cold
Offshore/Oilfield - Corrosion-resistant design for harsh environments
Smart BMS+EMS dual-system coordination enables remote O&M and AI energy optimization.

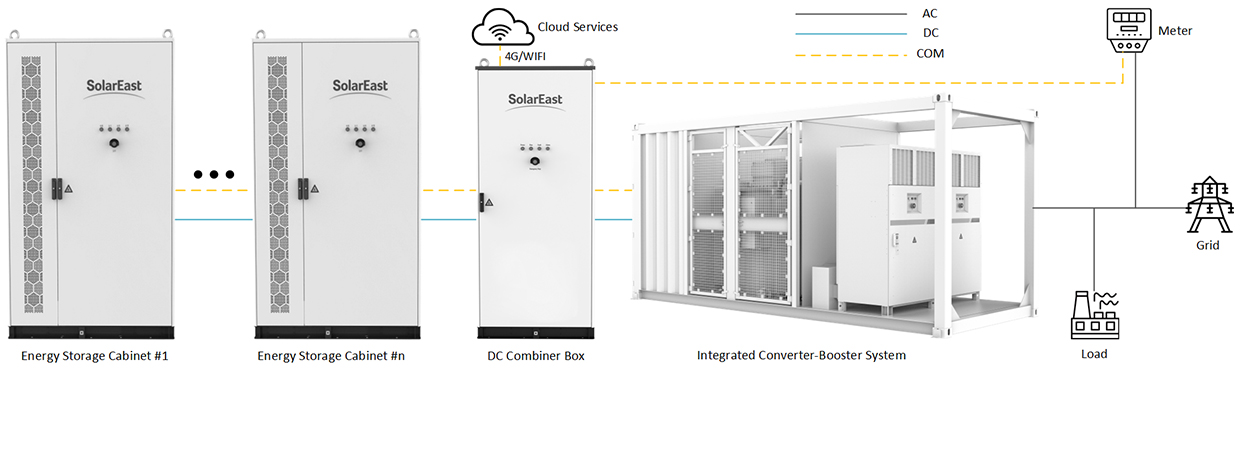

Product Solution
FAQ
What role can BESS play in frequency regulation?
A.By rapidly injecting or absorbing power, BESS can help maintain the grid’s frequency close to its nominal value (e.g., 50 Hz or 60 Hz). When there’s a mismatch between supply and demand, BESS can quickly respond to stabilize frequency.
How do BESS compare to supercapacitors?
A.• Energy Density vs. Power Density: BESS offer higher energy density (store more energy per unit volume), while supercapacitors excel at delivering high power quickly.
• Cycle Life: Supercapacitors have a very long cycle life; batteries degrade more quickly over repeated cycles.
• Duration of Discharge: BESS is well-suited for longer-duration applications (minutes to hours), whereas supercapacitors are ideal for short, high-power bursts (seconds to minutes).
What is a Battery Energy Storage System (BESS)?
A.A.Battery energy storage system (BESS) is a technology that uses lithium-ion batteries as the core to achieve efficient storage and release of electrical energy through battery packs, management systems, and power conversion devices. It is mainly applied in power grid peak shaving, renewable energy integration, and distributed energy management, and has the characteristics of high energy density, fast response, and long cycle life.
Why are BESS solutions important for modern energy grids?
A.Modern energy grids increasingly depend on variable renewable sources, like solar and wind. This variability means supply does not always match demand. A BESS smooths power output, provides backup power during outages, and helps maintain grid frequency and voltage. This reliability benefit is crucial for power quality and grid stability.
What are the typical applications where supercapacitors might outperform BESS?
A.The core advantages of supercapacitors lie in their fast charging and discharging capabilities (completed in seconds), ultra long cycle life (over hundreds of thousands of cycles), wide temperature adaptability, and high safety (no chemical leakage risk). These characteristics make it significantly superior to traditional BESS in applications that require instantaneous power support, frequent charging and discharging, or extreme environments.
