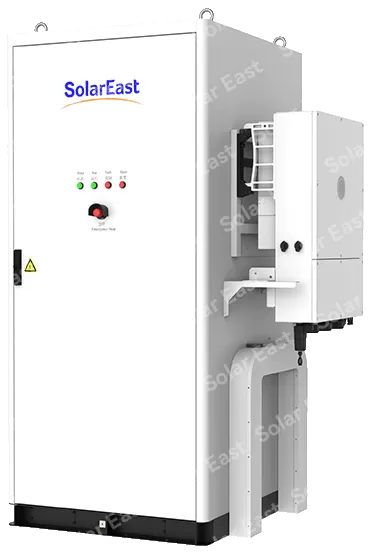

Air-cooling Energy Storage Cabinet
Air cooled outdoor energy storage cabinets feature efficientthermal management, which extends battery life, and a five-levelsafety design. Moreover, this product ensures reliable power supplyfor different commercial and industrial (assuming “C&L" refers tocommercial and industrial) energy storage applications.
UN38.3
IEC61000 IEC62477
IEC62619 IEC63056
Product Features and Advantages
High Security
Battery circuit safety management, fast fuse protection.
A multi-level battery protection system ensuring impeccable safety. Intelligent anti-leakage detection,enhancing system safety.
Long Lifespan
Intelligent Air cooling ensures higher efficiency and longer battery cycle life.
Modular design with parallel support for easy system expansion.
High Integration

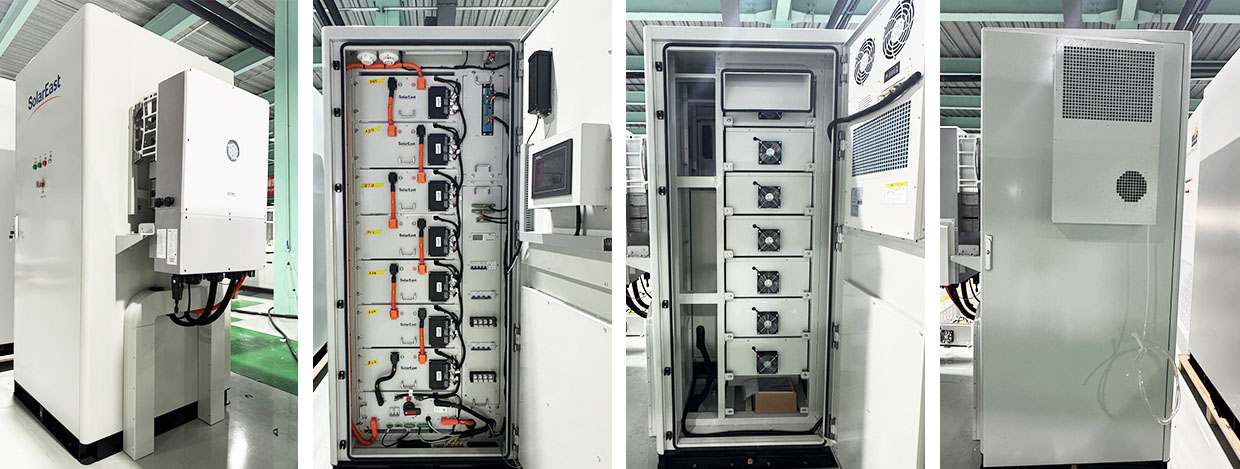

Highly integrated, easy to transport and operation and maintenance. Fully pre-assembled, eliminating the need for on-site battery module installation.
On-site installation within 8 hours.
Intelligent
Real-time status monitoring and fault recording to achieve fault warning and fault location.
Built-in battery performance monitoring and recording function.
Technical Specifications

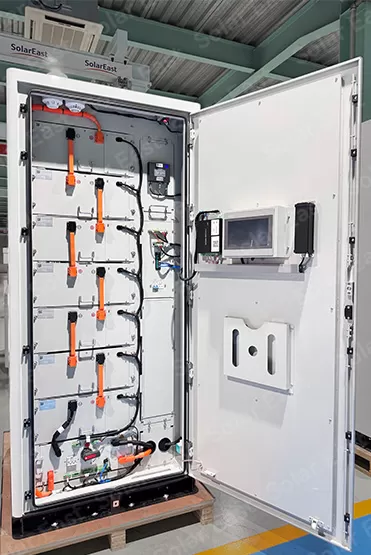

SE100A-50K
PV
| Maximum input power: 100kW |
| maximum input voltage: 1000V |
| MPPT operating voltage range/Rated voltage: 180-850V/600V |
| Maximum input current: 45/45/45/45/45A |
| maximum short circuit current: 55/55/55/55/55/55A |
MPPT quantity: 2 |
| MPPT input string count: 6/6 |
Battery Side
| Cell Specification: LFP 3.2V/280Ah |
| Battery RACK Configuration: 1P112S |
| System Capacity: 100.352kWh |
| Voltage Range: 302.4~403.2V |
| Nominal Voltage: 358.4V |
| Cycle Life: 8000 |
Ac grid connection side
| Rated Power: 50kW |
| Allowable Grid Voltage Range: 400V(340-436V) |
Way of Connection: 3P+N+PE |
| Allowable Grid Frequency Range: 50/60H±2.5Hz |
| Maximum Current Output: 79.8A |
Ac off-network side
| AC Rated Power: 50kW |
| Allowable Grid Voltage Range: 380V/400V |
| Way of Connection: 3P+N+PE |
| Allowable Grid Frequency Range: 50/60 |
| Maximum Current Output: 79.8A |
| Off-grid switching time: ＜10ms |
System Parameter
| Dimension(W*D*H): 1355*1300*2300mm |
| Weight: 1500kg |
| System Efficiency: ＞86% |
| Environmental Temperature: －20-55℃ |
| Humidity: ≤95% |
| Cooling method: Air cooling |
| Maximum working altitude: 2000m |
| Fire safety configuration: Aerosol |
| Communication Interface: Ethernet/CAN/RS485 |
| Compliant with standards: GB/T 34120，GB/T 36276，IEC62477，IEC62619，IEC63056 |
Product Application
Industrial Parks - Save electricity bills
Solar+Storage+Charging Stations - Tri-integrated system boosts green energy utilization by 60%
Data Centers - Uninterrupted power supply reduces PUE by 0.3+
Telecom Base Stations - Stable operation in -40°C extreme cold
Offshore/Oilfield - Corrosion-resistant design for harsh environments
Smart BMS+EMS dual-system coordination enables remote O&M and AI energy optimization.

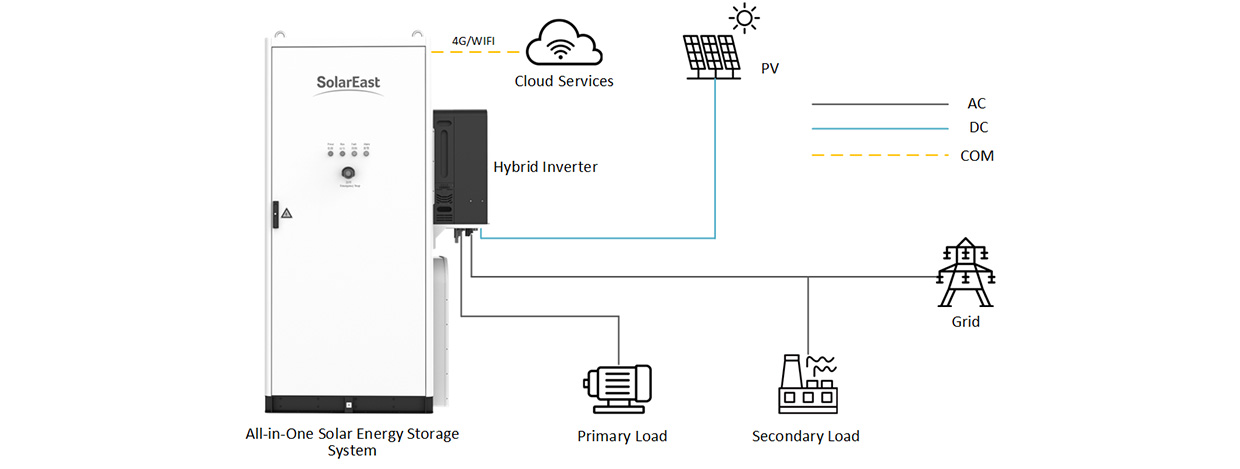

Product Solution
FAQ
How is BESS used for renewable energy integration?
A.In solar and wind installations, BESS stores excess energy during periods of high generation, then releases that stored energy during low generation or peak demand. This application helps stabilize output and reduces curtailment (wasting potential generation).
What are the main advantages of BESS?
A.• High Energy Density: BESS can store large amounts of energy in relatively small footprints.
• Long-Duration Storage: They can provide power for hours, making them suitable for load shifting, peak shaving, or time-of-use management.
• Established Technology: Lithium-ion and related chemistries are mature, widely available, and backed by extensive industry experience.
• Versatility: BESS can serve multiple roles, from residential backup to utility-scale support.
What is a Battery Energy Storage System (BESS)?
A.A.Battery energy storage system (BESS) is a technology that uses lithium-ion batteries as the core to achieve efficient storage and release of electrical energy through battery packs, management systems, and power conversion devices. It is mainly applied in power grid peak shaving, renewable energy integration, and distributed energy management, and has the characteristics of high energy density, fast response, and long cycle life.
What role can BESS play in frequency regulation?
A.By rapidly injecting or absorbing power, BESS can help maintain the grid’s frequency close to its nominal value (e.g., 50 Hz or 60 Hz). When there’s a mismatch between supply and demand, BESS can quickly respond to stabilize frequency.
How do BESS compare to supercapacitors?
A.• Energy Density vs. Power Density: BESS offer higher energy density (store more energy per unit volume), while supercapacitors excel at delivering high power quickly.
• Cycle Life: Supercapacitors have a very long cycle life; batteries degrade more quickly over repeated cycles.
• Duration of Discharge: BESS is well-suited for longer-duration applications (minutes to hours), whereas supercapacitors are ideal for short, high-power bursts (seconds to minutes).
