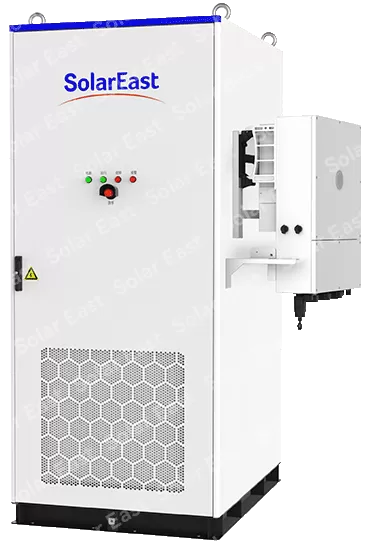

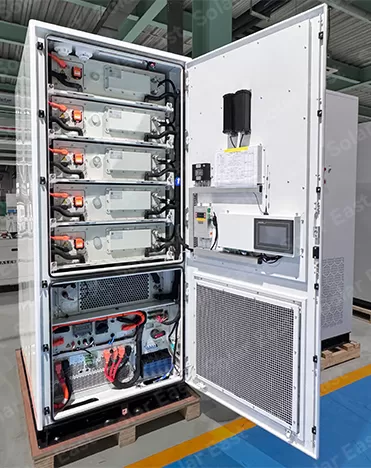

100kW-215kWh Liquid-cooled Energy Storage Cabinet

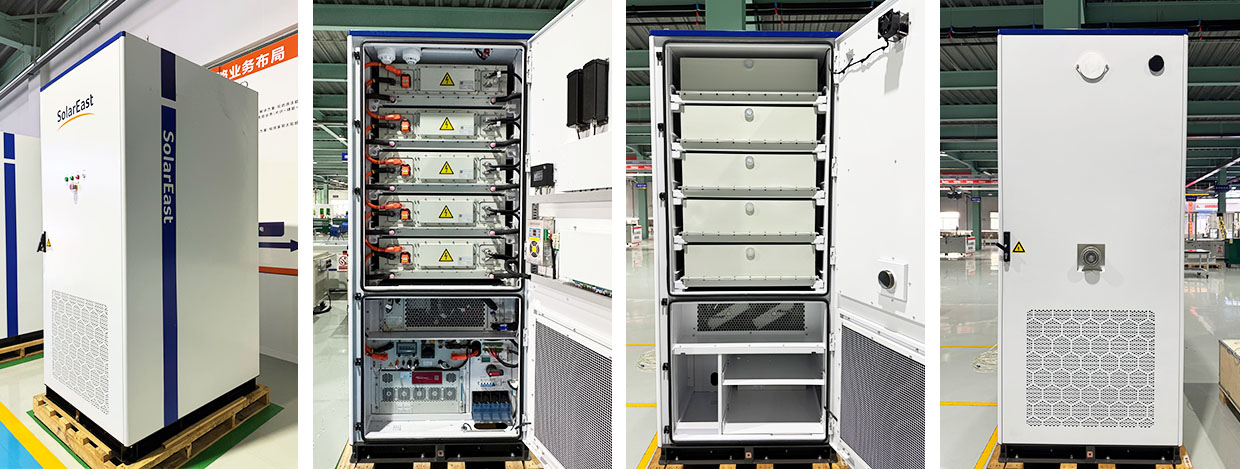

Liquid-cooled Hybrid Cabinet features high-density, high-safety, and high-performance LFP batteries. Whether used in a single cabinet or multiple units, it ensures stable charge and discharge cycles based on programmed working modes at different times.
Core Features: Support utility, solar, generator multi-standard access, intelligent visualization management, on-site access to the load can be used, no need for debugging
Battery Support: Wholesale, OEM.ODM Custom 215kWh energy storage system
Delivery Time: 7-14 days for samples, 35-60days for mass production
Support Wholesale, Distributors and OEM ODM Custom Battery. Please Contact us!
UN38.3
Product Features and Advantages
High Performance
Rated AC power output of 100kW, ensuring reliable energy supply for various applications. Intelligent air cooling function to effectively manage heat dissipation, enhancing system longevity and performance.
Smart Energy Management
Integrated Energy Management System (EMS) enables real-time monitoring and intelligent charge/discharge scheduling. Supports autonomous scheduling to optimize energy usage based on local electricity pricing.
Reliability and Safety
Four-level fire protection system, providing comprehensive safety measures.High-density, high-safety LFP cells with a lifespan exceeding 10 years, ensuring long-term reliability.
Scalability & Flexibility
Modular design allows for parallel operation of up to five units, achieving a total capacity of 1MWh to meet growing energy demands. Supports both on-grid and off-grid solutions, providing versatility in various operational scenarios.
Technical Specifications
SE215A-100K
PV
| Maximum input power: 156kW |
| maximum input voltage: 1100V |
| MPPT operating voltage range/Rated voltage: 180-800V/550V |
| Maximum input current: 32/32A |
| maximum short circuit current: 40/40A |
MPPT quantity: 10 |
| MPPT input string count: 6/6 |
Battery Side
| Cell Specification: LFP 3.2V/280Ah |
| Battery RACK Configuration: 1P240S |
| System Capacity: 215.04kwh |
| Voltage Range: 648-864V |
| Nominal Voltage: 768V |
| Cycle Life: 8000Cycles(0.5P,25+2°C,@70%SOH) |
Ac grid connection side / Ac off-network side
| Rated Power: 100kW |
| Allowable Grid Voltage Range: 400V(-15%~+15%) |
Way of Connection: 3P+N+PE |
| Allowable Grid Frequency Range: 50/60Hz(45-55Hz/55-65Hz) |
| Maximum Current Output: 166.7A |
System Parameter
| Dimension(W*D*H): 1550*1300*2300mm Inverter & AC Included |
| Weight: 2500kg |
| System Efficiency: ＞88% |
| Environmental Temperature: －20-55℃ |
| Humidity: ≤95% |
| Cooling method: Liquid Cooling |
| Maximum working altitude: 2000m |
| Fire safety configuration: Aerosol |
| Communication Interface: Ethernet/CAN/RS485 |
| Compliant with standards: GB/T 34120，GB/T 36276， |
Product Application
Commercial Buildings: Optimize energy consumption and reduce electricity costs in offices, retail stores, and other commercial establishments.
Industrial Facilities: Provide reliable power supply for manufacturing plants, warehouses, and other industrial operations.
Micro-Grids and Off-Grid Systems: Enable energy independence and resilience in remote locations or areas with unstable grid supply.
Renewable Energy Integration: Enhance the efficiency of solar PV systems by storing excess energy for later use.
Telecom Base Stations: Stable operation in -40°C extreme cold.
Backup Power Solutions: Ensure uninterrupted power for critical infrastructure and emergency services.
Smart BMS+EMS dual-system: coordination enables remote O&M and AI energy optimization.

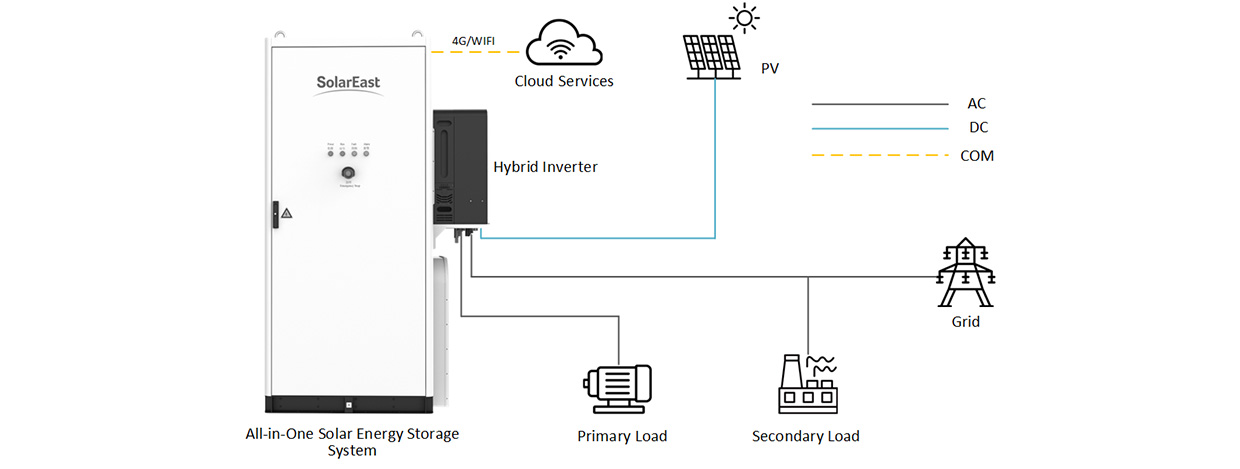

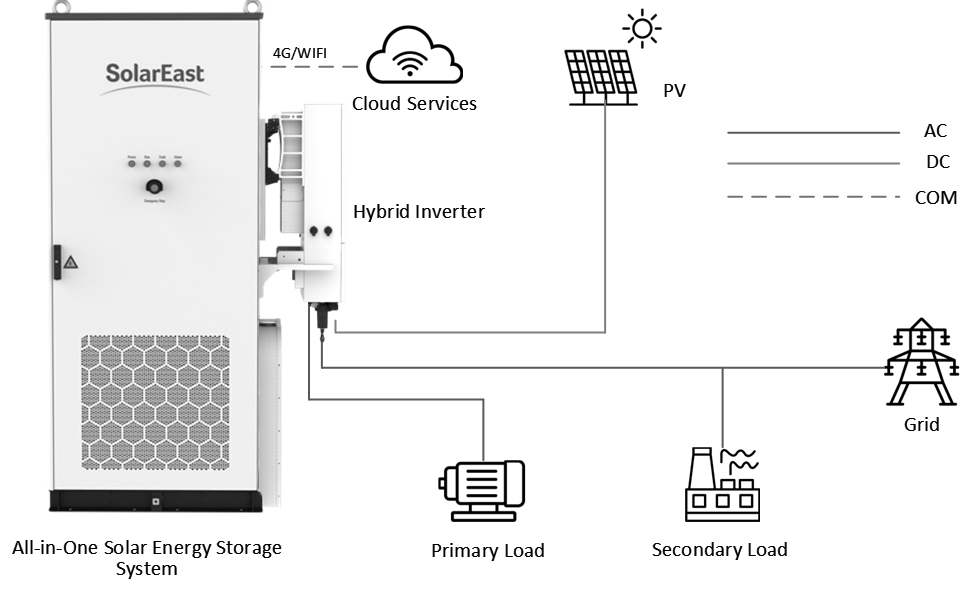

Product Solution
Why Choose Us?
Compact & Integrated Design: Combines battery, PCS, EMS, and cooling systems in one unit for easy deployment and space savings.
Smart Energy Management: AI-driven optimization reduces peak demand charges and maximizes energy efficiency.
Safe & Long-Lasting: Built with LiFePO4 batteries (8,000+ cycles) and IP55 protection for 24/7 reliability.
Scalable for Growth: Modular design supports expansion from 215kWh to MWh-scale to meet evolving business needs.
Limited-Time Business Offer: Bigger Orders = Bigger Rewards!

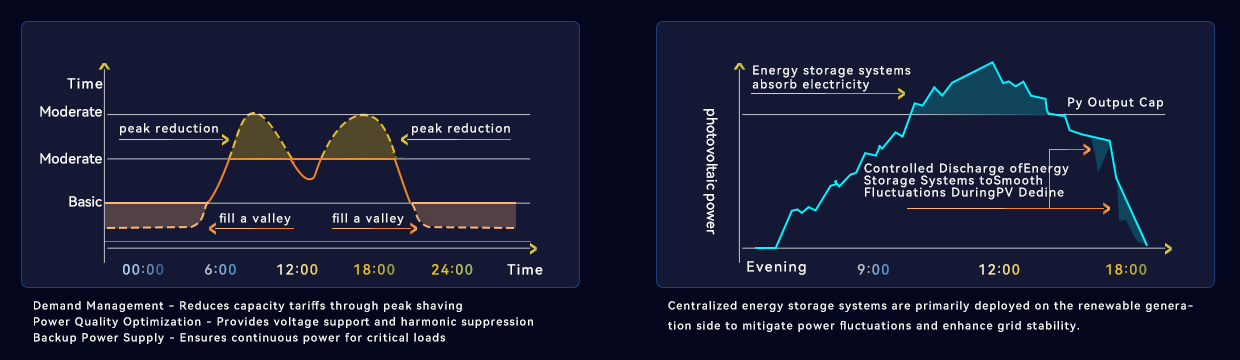

Solve the problem of staggered peaks, improve power quality and be prepared for any problems
Shaving Peaks: Centralized solutions are mostly applied to the new energy generation side,smoothing the output.
Filling Valleys: Distributed energy storage solutions are mostly used in small-scale commerciaand industrial businesses, where energy storage is configured to reduce themaximum power demand of the business at peak times, serving to reducecapacity tariffs. lt improves power quality and can also be used as a backuppower source.
Upgrade Your Energy Storage System & Unlock Exclusive Perks
FAQ
Can I expand the system capacity in the future?
A.Yes. The modular design supports up to 10 units in parallel, making it highly scalable for growing energy demands in industrial and commercial facilities.
What safety features are included?
A.The system includes a comprehensive fire protection system with: Smoke and temperature detectors Electric aerosol fire extinguishing Real-time signal integration with a fire control host and alarm system Ensuring multi-level safety in every operating condition.
How long does it take to install the system?
A.Thanks to its all-in-one cabinet design, installation is fast and straightforward, reducing onsite labor and deployment time significantly.
Can the BESS system be customized?
A.Yes. SolarEast BESS provides OEM/ODM solutions to meet specific capacity, voltage, and integration requirements for different business needs.
