Professional Battery Energy Storage Systems Manufacturer
Built with 314Ah LiFePO4 battery cells from EVE and other leading brands like REPT BATTERO and Hithium, our 52.24kWh Liquid-Cooling Lithium Battery Pack delivers safe, high-standard performance from a trusted ESS lithium-ion battery and custom battery pack manufacturer.
UN38.3

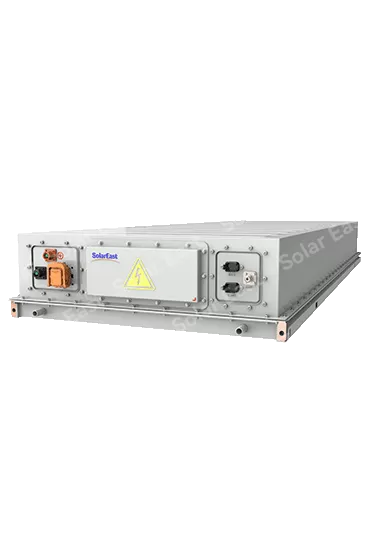

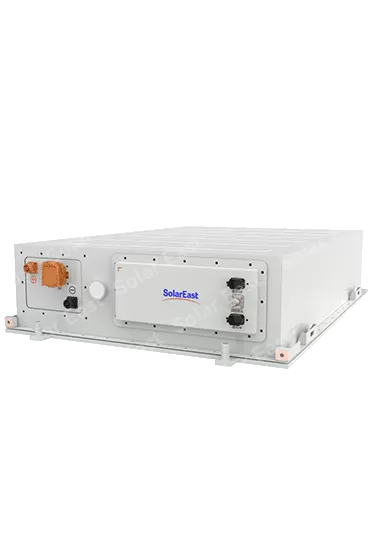

The Liquid-Cooling Lithium Battery Pack is engineered with high-performance 314Ah lithium battery LFP cells in a 1P52S configuration, delivering a nominal capacity of 52.24kWh (@25°C, 0.5P).
Designed as an advanced liquid cooled battery pack and liquid cooled lithium-ion battery solution, it provides superior thermal management, IP67 protection, and a long 8000-cycle lifespan.
This robust pack ensures stable, safe, and efficient energy storage performance, making it ideal for commercial, industrial, and residential ESS applications requiring high reliability and long-term durability.
Top Quality cells
Top A level energy type cells with our own unit design to ensure the high energy density with long cycle life the high safety standard. Eliminate the risk of explosion or combustion due to high impact overcharging or short circuit situation.
Build in BMS
BMS with high-performance dual-processors provides short circuit, over charging and over-temperature protection while maintaining a balanced voltage across all cells. LCD screen can real-time monitor the battery pack status.
Metal Case
Strong and durable. IP56 protection level. With metal handles easy to handle.About 40% of the weight of a comparable lead acid battery . A ” drop in” replacement for lead acid batteries.
Best Service
We arrange delivery to US, EU, Canada, Australia, Africa, etc (By air or sea). SolarEast provide 3-year-warranty and life time technical support. All orders processed in 48 hours.
314Ah LFP
| Model | SE-BP-314L1P52S | |
| Cell Capacity&Type | 314Ah LFP | |
| Group configuration | 1P52S | |
| Nominal capacity | 52.24kWh@25℃,0.5P | |
| Efficiency | ≥94% | |
| Max. constant charging/discharging power | 0.5P | |
| Range of operating voltage | 140.4V～187.2V | |
| Max. range of working temperature | Charging: 0℃~55℃ Discharging: -30℃~55℃ | |
| IP rating | IP67 | |
| Cooling method | Liquid cooling | |
| Weight | 340kg | |
| Dimension(W*D*H) | 790mm×1154mm×243mm | |
| Fire safety configuration | Aerosol | |
| Cycle Life | 8000 |
Commercial & Industrial Energy Storage: Designed with 314Ah LFP cells and efficient liquid cooling, it delivers reliable peak shaving, load shifting, and backup power for factories, data centers, and commercial buildings.
Solar + Storage Integration: The 52.24kWh liquid-cooled lithium-ion battery pairs seamlessly with PV systems, maximizing solar self-consumption, stabilizing energy output, and enhancing system efficiency.
Microgrid and Off-Grid Applications: Built for challenging environments, this liquid-cooled battery pack ensures long-lasting, stable power supply for islands, telecom stations, and remote areas with weak grids.
EV Charging Stations & Energy Hubs: Provides fast-response energy buffering for EV charging infrastructure, using advanced thermal management to support high loads and reduce grid upgrade costs.
Residential & Community Backup Power: Offers safe, quiet, and dependable backup energy for homes and community microgrids, delivering long service life with 8000-cycle durability and consistent performance.
SolarEast BESS is committed to delivering quality industrial and large scale ESS facilities professional technicasupport and thoughtful customer services beyond your expectations.
If you are looking for Liquid-Cooled Energy Storage Battery Pack and want to know more about the technical information, please feel free to contact SolarEast BESS.
Customized Energy Storage Battery Pack
At SolarEast BESS, We offer a variety of customized solutions to meet the diverse needs of residential and commercial applications. Customization options include battery cells, protection levels, Battery Management System (BMS), and capacity. Details are as follows:
Battery Type: Choose battery chemistry based on factors such as cycle life, cost, and safety.
Capacity: Customize the capacity of the battery pack according to specific requirements.
Voltage: Select different nominal voltages based on system requirements and compatibility.
Cooling Method: Choose between air-cooled or liquid-cooled designs based on environmental conditions and cooling efficiency needs.
Protection Level: Customizable protection features, such as IP ratings (e.g., IP20, IP67), to ensure safe operation in both indoor and outdoor environments.
Battery Management System (BMS): Customize the Battery Management System (BMS) with features such as remote monitoring, advanced safety protocols, and real-time performance tracking.

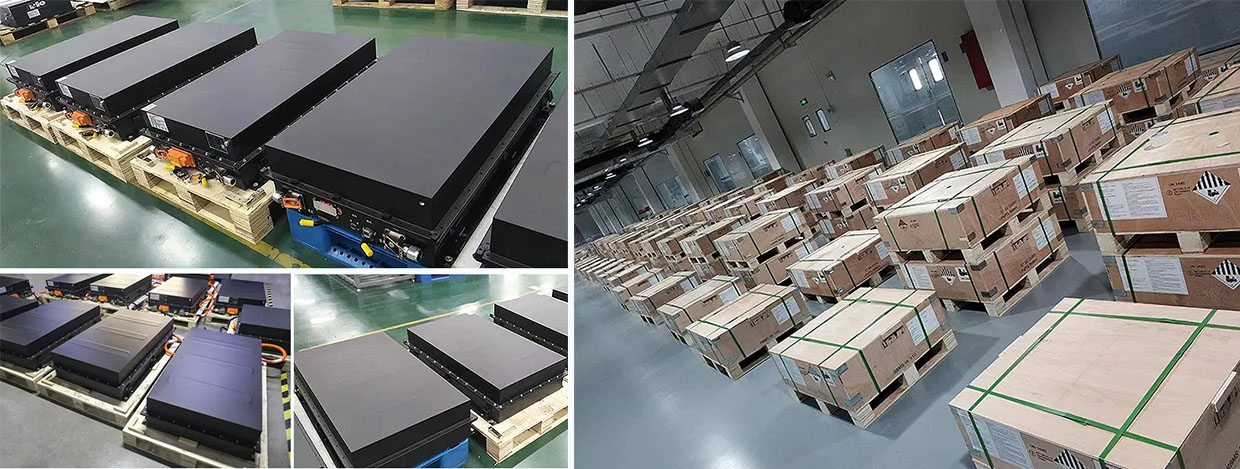

ESS Battery Pack Package
SolarEast BESS typically uses two types of packaging: Cardboard Box Packaging and Wooden Box Packaging. However, we also offer alternative packaging options based on customer requirements, including:
Cardboard Box Packaging: Lightweight and cost-effective packaging for small ESS components, such as battery cells and controllers, often with protective materials like foam.
Wooden Box Packaging: Durable packaging for medium-sized or heavy ESS components, providing strong protection against impact and environmental factors.
Shockproof Packaging: Packaging with shock-absorbing materials, such as foam, to protect sensitive ESS components from vibrations and impacts during transport.
Containerized Packaging: Used for large, heavy ESS systems or components, placed in containers to prevent shifting and protect against environmental factors during transport.
Our Commercial & Industrial and Large Utility Scale Energy Storage Solutions Have Reached Clients in Over 100 Countries, Empowering Homes and Businesses with Sustainable, Reliable Energy.
SolarEast business scope covers the global market. It has formed strategic partnerships with many famous brands worldwide, and has exported to more than 100 countries, including the United States, Canada, the United Kingdom, Germany, Australia, the Philippines, Lebanon, etc. SolarEast energy storage has passed the global mainstream certification, in line with the North American UL9540, UL1973, European CB/CE, and Italian CEI-021 standards.
With SolarEast, you can benefit from:
One-Stop Service
Full support from needs assessment and system design to installation and maintenance
Efficient Storage Solutions
Lower energy costs and enhance energy utilization
Smart Management
Enable peak shaving, load shifting, and backup power functionalities
Renewable Integration
Seamlessly integrate solar, wind, and other renewable energy sources for a sustainable future
FREE Request a Quote! Fill out the form to connect with us and start your energy storage journey today!
30kWh to 60kWh Hybrid Energy Storage System
From hurricanes to blackouts, reliable energy storage system ensures you're able to keep your home & family safe no matter what comes your way. Say goodbye to reliance on the energy companies. Enjoy the same freedom that 50,000+ customers have with their own energy storage system.
Perfect for Large Industrial
AC/DC Coupling Capability
Modular & Scalable Energy
Seamless Backup Power
70kWh to 110kWh Air cooled Energy Storage System
The 70kWh/90kWh/110kWh Commercial and Industrial (C&I) Energy Storage Systems from SolarEast BESS are designed to meet the high energy demands of factories, data centers, and large facilities.
Flexible Capacity Options
High Energy Density & Extended Cycle Life
All-in-One Compact Modular Architecture
Smart Integration
100kWh to 241kWh Air cooled Energy Storage System
ALL-IN-ONE CABINET highly integrates self-developed and self-produced high-quality core, battery management system, energy storage converter system, energy management system, fire protection system, efficient thermal management system, intelligent early warning system into one cabinet, which is combined like building blocks to achieve rapid installation and flexible expansion.
SAFETY & RELIABILITY
FLEXIBLE PARALLELING
PERFORMANCE AND FLEXIBILITY
INTELLIGENT MANAGEMENT
