Newest ESS for Utility-scale Application
Battery energy storage system container with 1+N scalability, combining solar photovoltaic, diesel power generation, grid and utility power. It is suitable for use in microgrids, in rural areas, in remote areas, or in large-scale manufacturing and farms, as well as for charging stations for electric vehicles.
UN38.3
IEC61000 IEC62477
IEC62619 IEC63056
Product Features and Advantages
Higher Energy Density

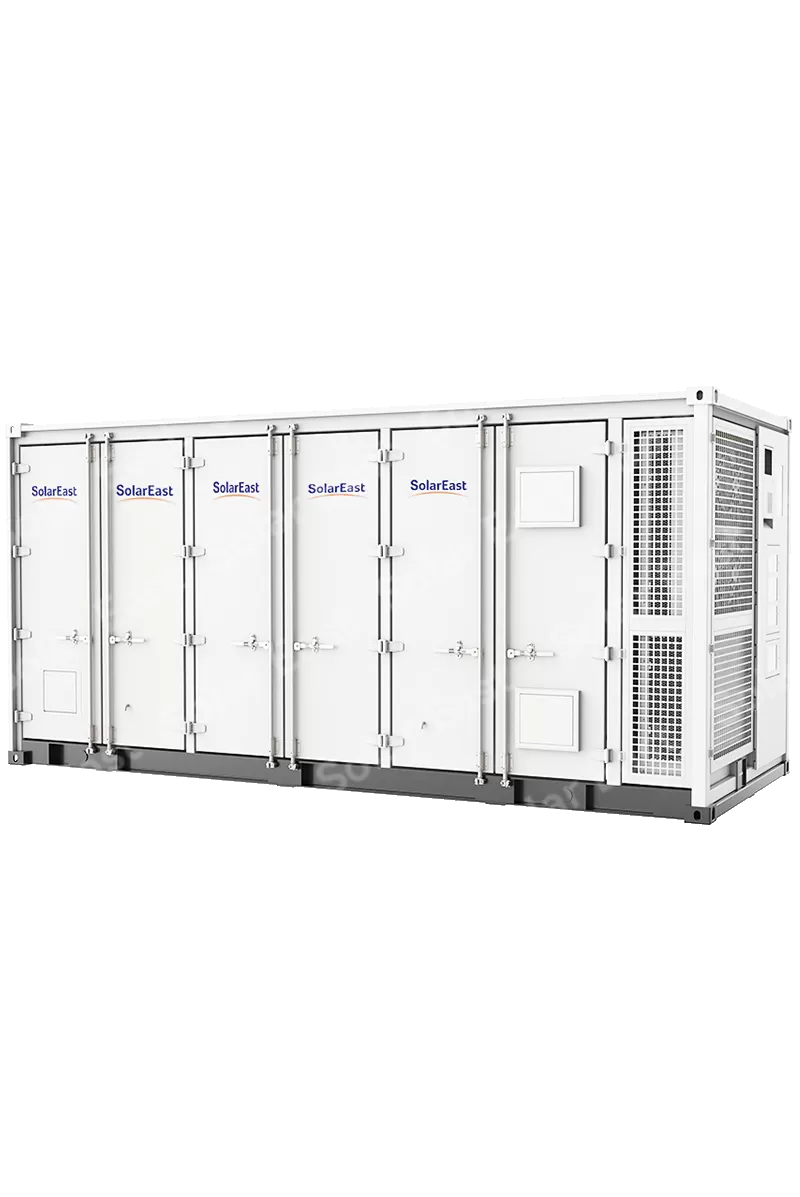

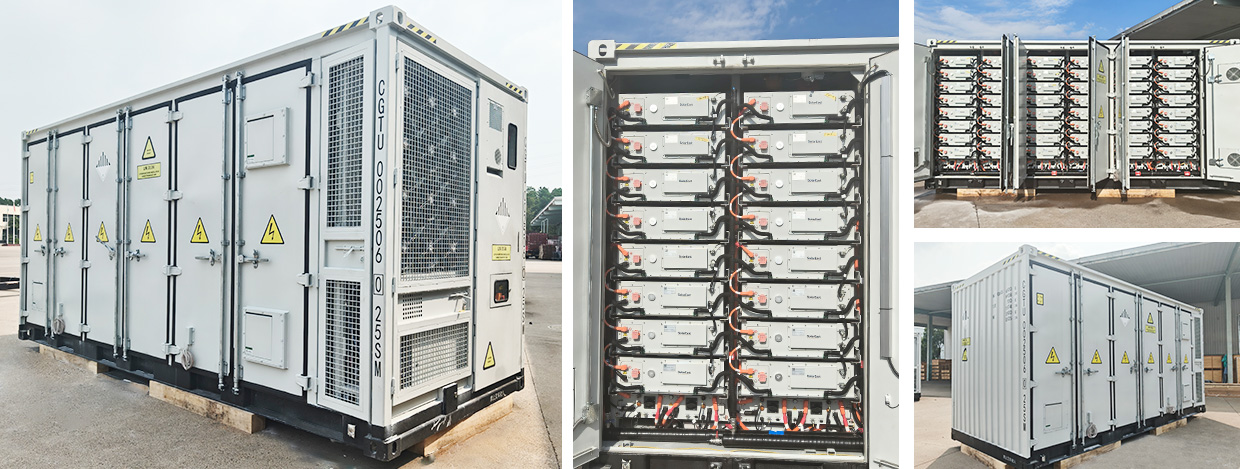

The 20-foot liquid-cooled energy storage container has a maximum capacity of 3.34MWh, providing higher energy density, and saving costs.
Longer Service Life
The cell temperature consistency extends the battery service life by 5% enhances the safety of batteries, and increases returns.
High Integration
Modular design, DC 1500V system.

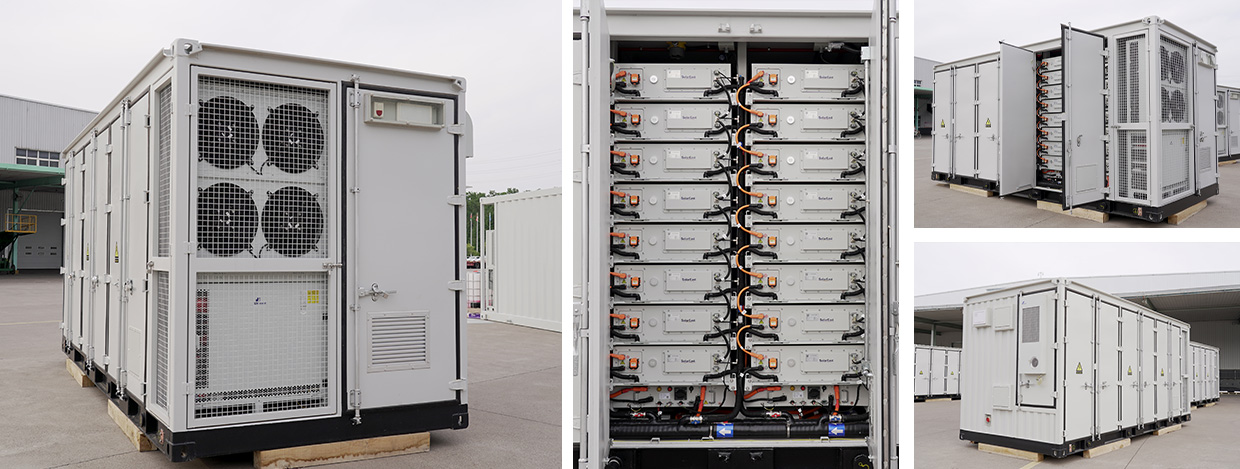

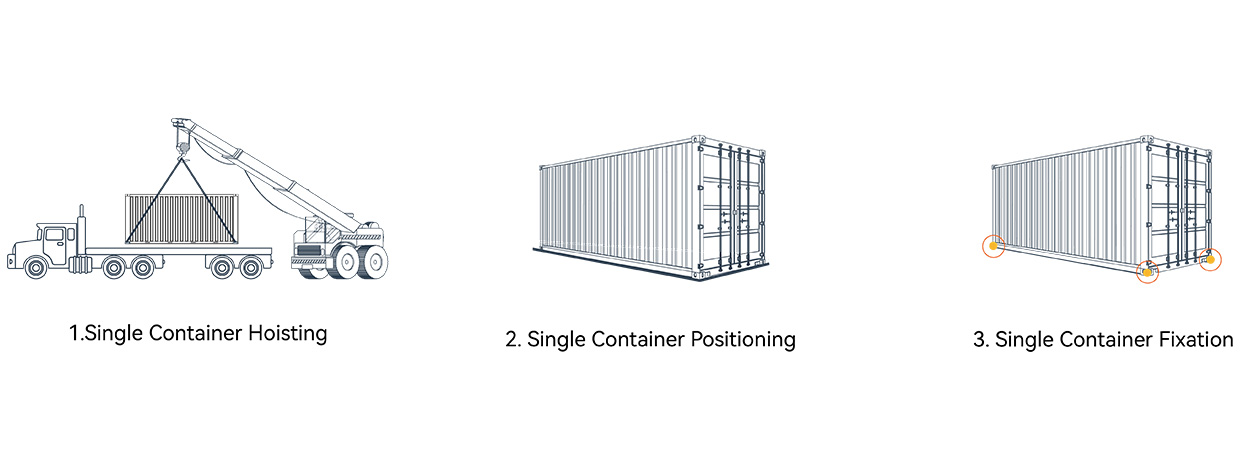

Electrical and battery separation design, easy maintenance.Non-walk-in/modular highly integrated design saves space.Prefabricated compartment installation solution reducing on-site installation cost and commissioning time.
Higher Protection
The product utilizes the IP55 (PACK IP65) high protection level & C4 protection level and the high/low-temperature
design.
Technical Specifications
3.34MWh
Specifications
| Technical Data | 3.34MWh Containerized Energy Storage System |
| Battery type | 3.2V, 314 Ah Lithium iron phosphate |
| Max. connection number | LFP3.2V/314Ah |
| Total energy | 3343.97kWh |
| Rated power (0.5P) | 1672kW |
| Voltage range (Battery) | 1123.2~1497.6V |
| System | |
| Dimension (W*D*H) | 6058mm *2438mm*2896mm |
| Weight | ≤35T |
| IP rating | IP55 |
| Operating temperature | -20~50℃ |
| Altitude | ≤2000m（Standard） |
| Cooling method | Liquid cooling/50% ethylene glycol |
| Fire safety configuration | Aerosol |
| Corrosion resistance | C4 |
| Communication Interface | CAN/Ethernet |
| Certificates | GB/T36276 - 2023 |
| Cycle Life | 8000 |
Product Application

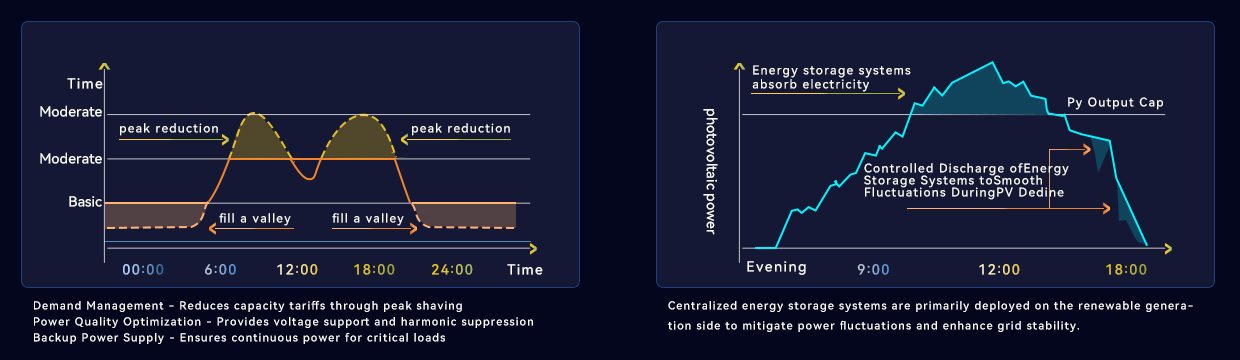

Renewable Power Plants– Smooth renewable energy output, enhance green power utilization
Containerized Battery Energy Storage System– Peak-valley arbitrage, reduce electricity costs
Microgrids/Off-Grid Power Supply– Emergency backup, ensuring stable energy
Data Centers/5G Base Stations– High-density storage, zero downtime
Ports & Mining Sites– High-power demand, long-lasting endurance
Modular design, plug-and-play deployment; smart remote monitoring & maintenance. The liquid-cooled energy storage container powers a sustainable, low-carbon future!

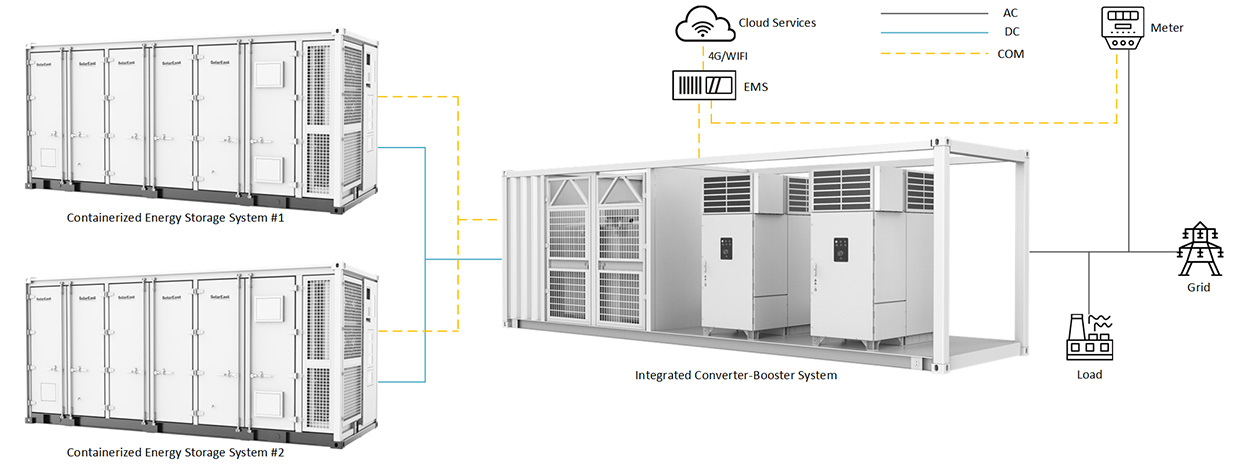

Product Solution
FAQ
What are the main advantages of BESS?
A.• High Energy Density: BESS can store large amounts of energy in relatively small footprints.
• Long-Duration Storage: They can provide power for hours, making them suitable for load shifting, peak shaving, or time-of-use management.
• Established Technology: Lithium-ion and related chemistries are mature, widely available, and backed by extensive industry experience.
• Versatility: BESS can serve multiple roles, from residential backup to utility-scale support.
What role can BESS play in frequency regulation?
A.By rapidly injecting or absorbing power, BESS can help maintain the grid’s frequency close to its nominal value (e.g., 50 Hz or 60 Hz). When there’s a mismatch between supply and demand, BESS can quickly respond to stabilize frequency.
How is BESS used for renewable energy integration?
A.In solar and wind installations, BESS stores excess energy during periods of high generation, then releases that stored energy during low generation or peak demand. This application helps stabilize output and reduces curtailment (wasting potential generation).
Why are BESS solutions important for modern energy grids?
A.Modern energy grids increasingly depend on variable renewable sources, like solar and wind. This variability means supply does not always match demand. A BESS smooths power output, provides backup power during outages, and helps maintain grid frequency and voltage. This reliability benefit is crucial for power quality and grid stability.
What are the typical applications where supercapacitors might outperform BESS?
A.The core advantages of supercapacitors lie in their fast charging and discharging capabilities (completed in seconds), ultra long cycle life (over hundreds of thousands of cycles), wide temperature adaptability, and high safety (no chemical leakage risk). These characteristics make it significantly superior to traditional BESS in applications that require instantaneous power support, frequent charging and discharging, or extreme environments.
