Grade A LiFePO4 cells from EVE, REPT BATTERO, and Hithium, ensuring superior quality for every High Voltage Rack Mounted Battery. This intelligent Commercial Rack Mount ESS and Industrial Battery Rack supports multi-standard access (utility, solar, generator) and offers intelligent visualization management with no need for debugging. We support wholesale, OEM, and ODM custom systems from 43kWh up to 344kWh.
UN38.3
Operational Assurance
Two-tier battery safety management system. Full coverage of critical sampling points, building a comprehensive IoT. Real-time feedback control; fault diagnosis, real-time warning. Triple protection, blocking the spread of risk in layers.
Thermal Management System
Experience a new level of heat management with balanced performance, optimal cooling, and consistent temperatures. Cutting-edge multi-physics simulation and thermal safeguards ensure safety.
Flexible Configuration
Our modular design suits various capacities and voltage platforms, allowing for easy maintenance and repair high compatibility. Elevate your expectations with us.
Intelligent Monitoring
Monitor, view, and set PCS, battery system, air conditioner, fire hydrant, and other operation data and fault data. record system charging and discharging data,process data, and generate reports.

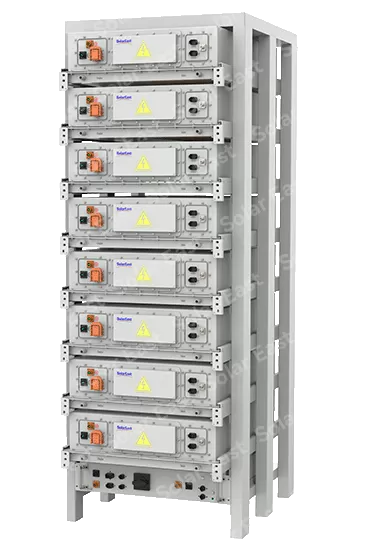

SE-RC-280L-1P48S
Specifications
| Model | SE-RC-280L-1P48S*5 | SE-RC-280L-1P48S*8 |
| Cell Capacity&Type | 280Ah LFP | 280Ah LFP |
| Group configuration | 1P48S*5 | 1P48S*8 |
| Nominal capacity | 215kWh(@25°C±2) | 344kWh(@25°C±2) |
| Efficiency | ≥94% | ≥94% |
| Max. constant charging/discharging power | 0.5P | 0.5P |
| Range of operating voltage | 648V~864V | 1036.8V~1382.4V |
| Max. range of working temperature | Charging: 0℃~55℃ Discharging: -30℃~55℃ | Charging: 0℃~55℃ Discharging: -30℃~55℃ |
| IP rating | Pack：IP67 | Pack：IP67 |
| Cooling method | Liquid cooling | Liquid cooling |
| Weight | 1835kg | 2750kg |
| Dimension(W*D*H) | 918mm×1138mm×1692mm | 918mm×1138mm×2472mm |
| Fire safety configuration | Aerosol | Aerosol |
| Cycle Life | 8000 | 8000 |
High-Density Data Center Backup & Cooling Criticality: Designed as a High Voltage Rack Mounted Battery, this system is perfectly suited for powering data centers and critical IT loads. The advanced Liquid-Cooled BESS technology actively maintains a stable temperature, maximizing battery life and efficiency where every degree matters. The high-level Pack: IP67 protection ensures safety and reliability in controlled but demanding environments.
Industrial-Grade Safety for Manufacturing & Heavy Industry: Our robust Industrial Battery Rack prioritizes safety with its integrated Aerosol Fire Safety Configuration. Combined with the superior cell protection of the Pack: IP67 rating, this system ensures reliable energy storage for manufacturing plants, mitigating operational risks and guaranteeing safe, stable power delivery for sensitive industrial equipment.
SolarEast BESS is committed to delivering quality industrial and large scale ESS facilities professional technicasupport and thoughtful customer services beyond your expectations.
SolarEast business scope covers the global market. It has formed strategic partnerships with many famous brands worldwide, and has exported to more than 20 countries. SolarEast energy storage has passed the global mainstream certification.
With SolarEast, you can benefit from:
One-Stop Service
Full support from needs assessment and system design to installation and maintenance
Efficient Storage Solutions
Lower energy costs and enhance energy utilization
Smart Management
Enable peak shaving, load shifting, and backup power functionalities
Renewable Integration
Seamlessly integrate solar, wind, and other renewable energy sources for a sustainable future
FREE Request a Quote! Fill out the form to connect with us and start your energy storage journey today!
With their compact design, scalability, high efficiency, and advanced safety features, they provide reliable and efficient energy storage, enabling users to optimize their energy usage, reduce costs, and contribute to a cleaner and more future.
Increased Energy Density
Efficient Power Conversion
Reduced Cable Losses
Air Cooling
These High-Voltage systems are specifically engineered as LiFePO4 Rack-Mounted BESS for Peak Shaving and are optimized for superior efficiency compared to traditional low-voltage lithium batteries in commercial and industrial applications.
Increased Energy Density
Efficient Power Conversion
Reduced Cable Losses
Air Cooling
Rack mount batteries provide numerous benefits, including high capacity, high energy density, and long cycle life. They are also designed to fit seamlessly into server racks, ensuring they take up minimal space and are easy to install and maintain.
Safety First
Robust Design
Warranty Assurance
Intelligent Management
Transform your energy management with our state-of-the-art High Voltage Rack Mounted Battery, the ultimate LiFePO4 Battery Rack Battery solution for industrial and commercial applications, providing a reliable and cost-effective Rack Mount LiFePO4 Lithium Battery system for efficient Industrial Rack Mounted Battery storage.
Optimal Energy Independence
Advanced Battery Technology
Seamless Integration
Smart BMS (Battery Management System)
Our cutting-edge High Voltage Rack Mounted Battery systems integrate advanced LiFePO4 Rack Battery technology with intelligent BMS control, enabling scalable Solar Energy Battery Storage Rack solutions and robust Industrial Battery Rack performance with enhanced safety and balanced energy output.
Robust Design
High Performance and Compatibility
Long-Term Investment
Advanced Battery Technology
