Customizable 14kWh to 372kWh Energy Storage Battery
Modular Design: 18–358kWh scalable capacity
High Voltage (648–864V): Suitable for large power demands
LFP Battery Technology: Long cycle life (8000+ cycles) and stable performance
Advanced Safety Features: Aerosol fire suppression system, temperature control, and battery management systems
Certified: UN38.3, MSDS, CE, RoHS certifications
UN38.3
Our High Voltage ESS Racks are designed for large-scale energy storage applications, offering a flexible, modular solution for a wide range of industries, including commercial, industrial, and renewable energy projects. These racks are capable of providing long-duration power storage and energy management for critical applications such as peak shaving, backup power, and off-grid systems.
Our High Voltage ESS Racks are versatile and can be used for:
Commercial & Industrial (C&I): Reliable power storage for commercial buildings and industrial operations.
Microgrids: Ideal for decentralized power systems in remote locations or grid-independent operations.
Data Centers: Ensure continuous operation and backup power for mission-critical applications.

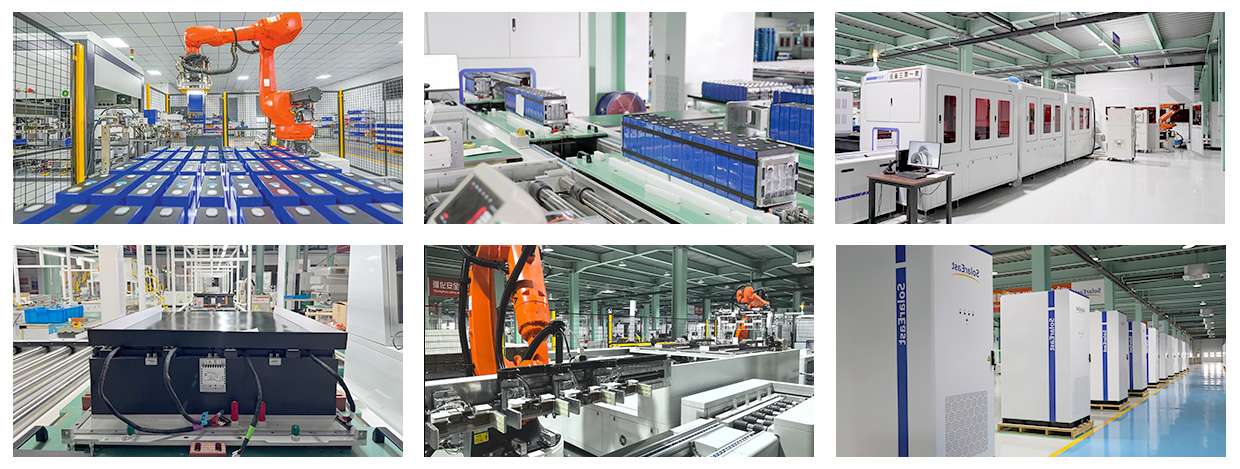

We manufacture our High Voltage ESS Racks with the highest quality standards in our ISO-certified facilities. With over 27 years of experience, we ensure each system is rigorously tested and backed by a comprehensive warranty.
Certifications:
ISO 9001: Quality Management Systems
UN38.3: Lithium Battery Transport Safety
CE, RoHS: Compliance with European standards
Increased Energy Density
High-voltage batteries can achieve higher energy densities, meaning they can store more energy in a smaller physical footprint. This is particularly beneficial in applications where space is limited.
Efficient Power Conversion
High-voltage batteries can provide more efficient power conversion due to lower current requirements. This results in reduced power losses during charging and discharging, leading to improved overall system efficiency.
Reduced Cable Losses
With higher voltage levels, the current flowing through the system decreases, resulting in lower cable losses. This allows for longer cable runs without significant power loss, enabling flexible installation options.
Air Cooling
High-voltage batteries often employ air cooling systems, which are simpler and more cost-effective. Air cooling enhances the thermal management of the battery system, preventing overheating and ensuring optimal performance.

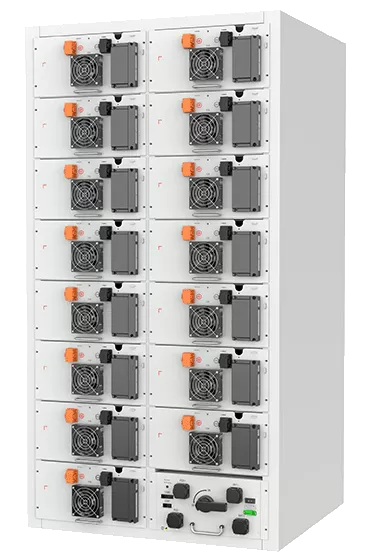

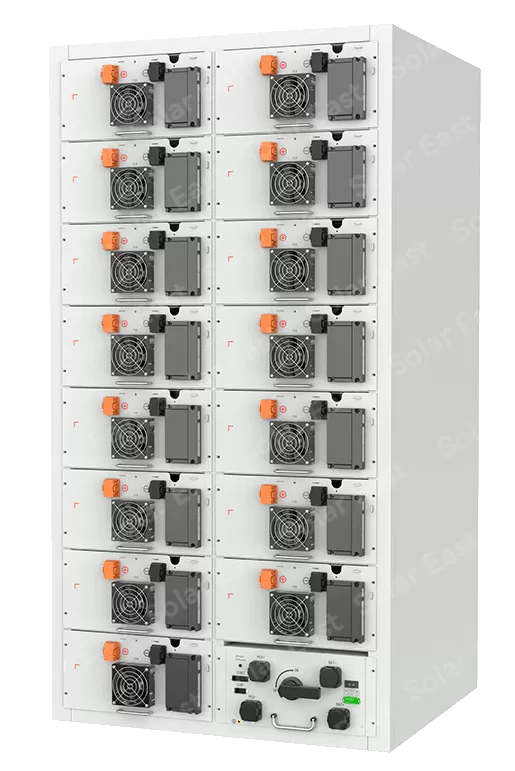

SE-RC-280A-1P16S*15
Specifications
| Model | SE-RC-280A-1P16S*15 |
| Cell Capacity&Type | 280Ah LFP |
| Group configuration | 1P16S*15 |
| Nominal capacity | 215kWh(@25°C±2) |
| Efficiency | ≥94% |
| Max. constant charging/discharging power | 0.5P |
| Range of operating voltage | 648V~864V |
| Max. range of working temperature | Charging: 0℃~55℃ Discharging: -30℃~55℃ |
| IP rating | IP20 |
| Cooling method | Air cooling |
| Weight | 1950kg |
| Dimension(W*D*H) | 1056mm×830mm×2000mm |
| Fire safety configuration | Aerosol |
| Cycle Life | 8000 |
Commercial Peak Shaving and Demand Charge Reduction: Our LiFePO4 Rack-Mounted BESS for Peak Shaving is the ideal solution for commercial enterprises facing high demand charges. By utilizing the system's substantial 215kWh Nominal capacity to store cheaper off-peak energy, businesses can drastically reduce peak consumption, leading to significant and predictable utility cost savings monthly.
Scalable Industrial Load Shifting and Arbitrage: The Modular BESS design allows businesses to easily scale capacity based on energy arbitrage needs. This flexibility makes our Rack-Mounted BESS perfect for large industrial facilities to execute complex Load Shifting strategies, maximizing returns by capitalizing on dynamic time-of-use pricing and optimizing power consumption schedules.
Reliable Industrial Backup Power & Continuity: Ensure zero downtime for critical operations. Our robust LiFePO4 Rack Battery system provides immediate and stable Backup Power during grid interruptions. Coupled with the integrated Aerosol Fire Safety Configuration, the system guarantees safe, reliable operational continuity for manufacturing lines and essential infrastructure.
Flexible Deployment in Controlled Environments: Featuring an Air cooling method and IP20 rating, this Rack-Mounted BESS is optimized for simple, cost-effective deployment inside existing electrical rooms or indoor storage facilities. The compact, modular nature reduces installation complexity and space requirements, making it ideal for facilities with limited dedicated outdoor space.
Integration into Microgrids and Distributed Generation: Our high-performance Modular BESS acts as a reliable energy hub for decentralized systems. The standardized design and robust LiFePO4 Rack Battery technology ensure seamless integration with solar PV arrays and generators, forming a stable Microgrid that provides energy independence and resilience for campuses, remote sites, or commercial parks.
SolarEast BESS is committed to delivering quality industrial and large scale ESS facilities professional technicasupport and thoughtful customer services beyond your expectations.
Our innovative solar and lithium battery solutions have reached clients in over 100 countries, empowering homes and businesses with sustainable, reliable energy.
Why choose us?
A.1.Quick reply within 2 hours. 2.Testing before shipment and providing customers with data for eachcell. 3.Nearly 20 years of experience in exporting, can assist customers to complete the import.customs clearance, transportation, and other matters. 4.Provide sales guidance to help customerssell products quickly.
What is the lead time?
A.It depends on the product and order quantity. Battery cells in stock are usually shipped in 1~2 days.5~7days for new samples. 10~20days for big order. For custom products, please contact us.
What is the Role and Function of the EMS Module in BESS?
A.By utilizing precise data analysis and forecasting, EMS charges or discharges the storage system at the most appropriate times, avoiding overcharging or deep discharge, extending battery life, and achieving efficient energy distribution.
SolarEast business scope covers the global market. It has formed strategic partnerships with many famous brands worldwide, and has exported to more than 100 countries, including the United States, Canada, the United Kingdom, Germany, Australia, the Philippines, Lebanon, etc. SolarEast energy storage has passed the global mainstream certification, in line with the North American UL9540, UL1973, European CB/CE, and Italian CEI-021 standards.
With SolarEast, you can benefit from:
One-Stop Service
Full support from needs assessment and system design to installation and maintenance
Efficient Storage Solutions
Lower energy costs and enhance energy utilization
Smart Management
Enable peak shaving, load shifting, and backup power functionalities
Renewable Integration
Seamlessly integrate solar, wind, and other renewable energy sources for a sustainable future
