Professional Battery Energy Storage Systems Manufacturer
Space-Efficient Installation: Wall-mounted design minimizes floor space, suitable for compact urban homes or garages.
Grid Compatibility: Supports single-phase/three-phase inverters and dual communication protocols (CAN/RS485) for seamless integration with existing solar setups.
Seamless Integration: Compatible with leading inverter brands including Goodwe, Deye, Growatt, and Sofar, ensuring a smooth and efficient setup with your existing solar power infrastructure.
Certified and Trusted: Our product meets rigorous international standards including CE, RoHS, UN38.3, and MSDS certifications, affirming its quality and reliability.
UN38.3
IEC62619 IEC60730 IEC61000
IEC62040 IEC63056
Product Features and Advantages
Extended Lifespan
6000times @25℃ 0.5C: Exceeds industry standards for residential storage, with a 15+ year system lifespan.
Hardware Redundancy
BMS (intelligent Battery Management System) with self-diagnostic circuits and key loop redundancy to prevent overcharge, short circuits, and thermal issues.
Wide Temperature Range
Operates in -10°C to 35°C (discharge) and 0°C to 55°C (charge), with IP65 protection against dust and water ingress.
Plug-and-Play Setup
Simplified installation process for DIY or professional installers, reducing deployment time.
Technical Specifications

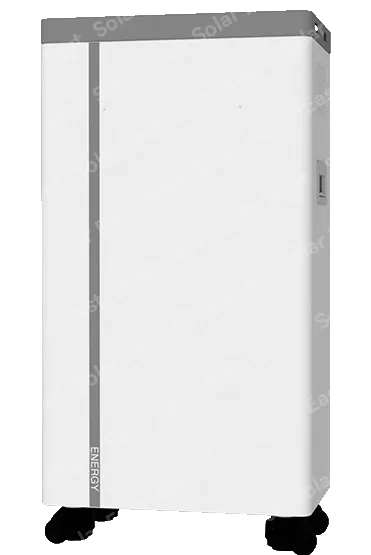

PowerCool-WLL010A1
Specifications
| Model | PowerCool-WLL010A1 |
| Total Energy | 10.49kWh |
| Usable Energy(DC) | 9.97kWh |
| Voltage | 44.8~57.6Vdc |
| Nominal Voltage | 51.2Vdc |
| Rated Capacity | 205Ah |
| Max.Charge Voltage | 57.6Vdc |
| Nominal Discharging Current | 100A(1P) / 160A(2P~6P) |
| Nominal Charging Current | 100A(1P) / 160A(2P~6P) |
| Weight | 87kg |
| Dimension(mm)(H*L*W) | 740*430*232mm |
| Max.recommende DOD | 95% |
| Operating Condition | Indoor |
| Operating Charge | 0~55℃ |
| Temperature Discharge | -15~55℃ |
| Standard Ambient Temperature Range | 0~40℃ |
| Storage Temperature Range | >1month 0~35℃/≤1 month -20~45℃ |
| Humidity | 5%～85%(RH)(No Condensation) |
| Over Voltage Category | Ⅱ |
| Cooling Type | Natural cooling |
| Case Material | Metal |
| Installation | floor-standing |
| IP Rating | IP 20 |
| Protective Class | I |

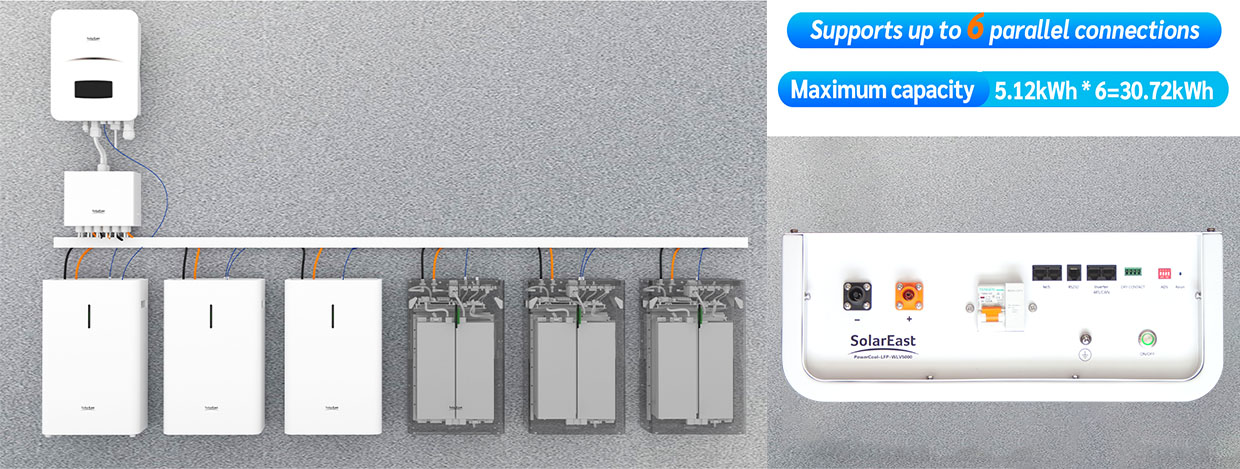

| Max.Connection Number | 6P |
| Communication | CAN/RS485 |
| Battery Protection | Over-current/Over-voltage/Short circuit Under-voltage/Over temperature |
| Certificates | CE,UN38.3,MSDS |
| Warranty | 10 years (5 free warranty + 5 paid warranty) |

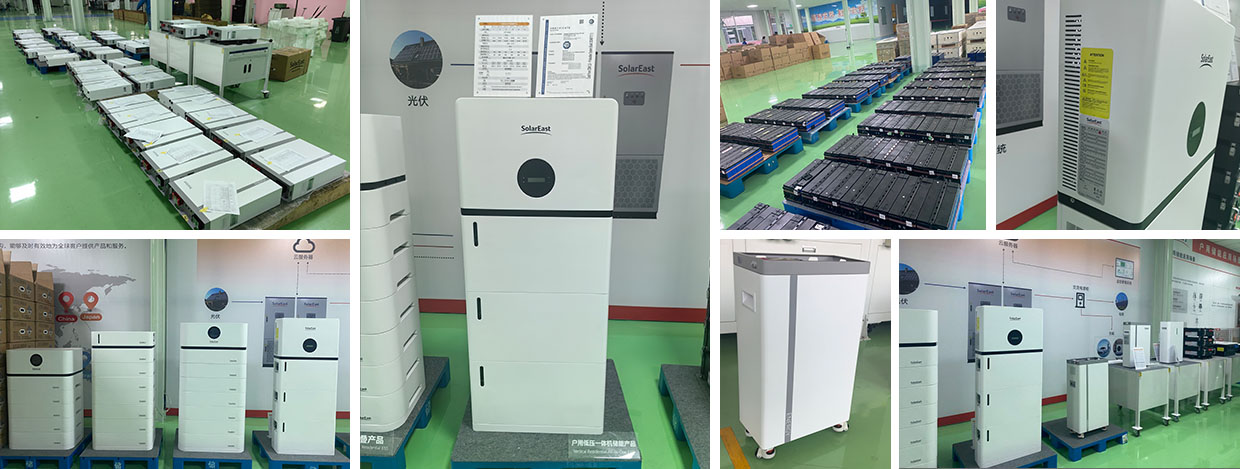

Our Factory
SolarEast BESS is committed to delivering quality industrial and large scale ESS facilities professional technicasupport and thoughtful customer services beyond your expectations.
Your One-Stop Energy Solution Provider
SolarEast is a trusted provider of comprehensive energy solutions. We're committed to providing prompt, professional support and delivering customized battery energy storage system solutions for industrial and commercial clients. Whether it’s energy management, cost optimization, or renewable energy integration, we offer professional expertise and tailored services to ensure your energy needs are always met with the highest level of service.
With SolarEast, you can benefit from:
One-Stop Service
Full support from needs assessment and system design to installation and maintenance
Efficient Storage Solutions
Lower energy costs and enhance energy utilization
Smart Management
Enable peak shaving, load shifting, and backup power functionalities
Renewable Integration
Seamlessly integrate solar, wind, and other renewable energy sources for a sustainable future
