Flexible configuration

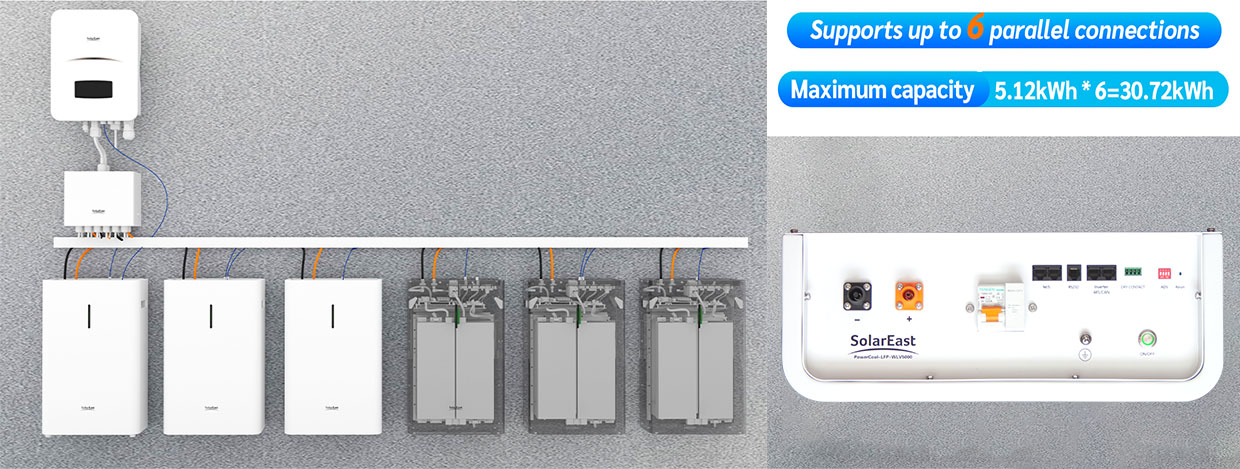

Multiple battery modules can be in parallel for expanding capacity and power.
Intelligent BMS
Protection functions include over-discharge overcharge, over-current, and over-high or low temperature.
Eco Friendly
The whole module is nontoxic, nonpolluting, and environmentally friendly.
Safe and reliable
The cathode material is made from LifePO4 with safety performance and long cycle life.
PowerCool-WLL016A1
Specifications
| Model | PowerCool-WLL016A1 |
| Total Energy | 16.07kWh |
| Usable Energy(DC) | 15.27kWh |
| Voltage | 44.8~57.6Vdc |
| Nominal Voltage | 51.2Vdc |
| Rated Capacity | 314Ah |
| Max.Charge Voltage | 57.6Vdc |
| Nominal Discharging Current | 150A |
| Nominal Charging Current | 150A |
| Weight | 120kg |
| Dimension(mm)(H*L*W) | 871*450*250mm |
| Max.recommende DOD | 95% |
| Operating Condition | Indoor |
| Operating Charge | 0~55℃ |
| Temperature Discharge | -15~55℃ |
| Standard Ambient Temperature Range | 0~40℃ |
| Storage Temperature Range | >1month 0~35℃/≤1 month -20~45℃ |
| Humidity | 5%～85%(RH)(No Condensation) |
| Over Voltage Category | Ⅱ |
| Cooling Type | Natural cooling |
| Case Material | Metal |
| Installation | floor-standing |
| IP Rating | IP 20 |
| Protective Class | I |
| Max.Connection Number | 6P |
| Communication | CAN/RS485 |
| Battery Protection | Over-current/Over-voltage/Short circuit Under-voltage/Over temperature |
| Certificates | CE,UN38.3,MSDS |
| Warranty | 10 years (5 free warranty + 5 paid warranty) |
