5.12kWh Residential Wall Mounted Battery
The 5KWh wall mounted battery is made of high quality LFP batteries with customized Battery Management System. It is easy to install and dispatch, and can be used in parallel with multiple sets of products. Suitable for villas, houses and other home application scenarios. Upgrades Household Energy System for Enhanced Independence and Savings
UN38.3
IEC61000 IEC62477
IEC62619 IEC63056
Product Features and Advantages
Wall-mounted or floor-standing
Safe LFP cells and smart BMS

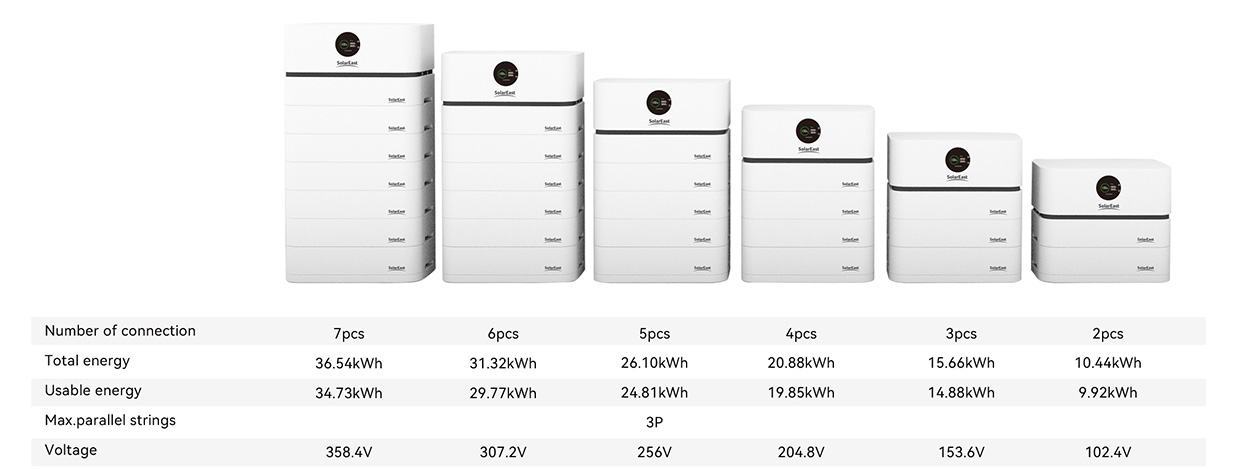

Scalable up to 30kWh
6,000 cycles at 90% DOD
15+ years design life
Technical Specifications
PowerCool-LFP-WLV5000
Specifications
| Model | PowerCool-LFP-WLV5000 |
| Total Energy | 5.12kWh |
| Usable Energy(DC) | 4.86kWh |
| Voltage | 44.8~57.6Vdc |
| Nominal Voltage | 51.2Vdc |
| Rated Capacity | 100Ah |
| Max.Charge Voltage | 57.6Vdc |
| Nominal Discharging Current | 80A(1P)/160A(2P)/160A(3P) 160A(4P)/160A(5P)/160A(6P) |
| Nominal Charging Current | 50A(1P)/100A(2P)/150A(3P) 160A(4P)/160A(5P)/160A(6P) |
| Weight | 47kg |
| Dimension(mm)(H*L*W) | 640*420*161.5mm |
| Max.recommende DOD | 95% |
| Operating Condition | Indoor |
| Operating Charge | 0~55℃ |
| Temperature Discharge | 0~55℃ |
| Standard Ambient Temperature Range | 0~40℃ |
| Storage Temperature Range | >1month 0~35℃/≤1 month -20~45℃ |
| Humidity | 5%～95%(RH)(No Condensation) |
| Over Voltage Category | Ⅱ |
| Cooling Type | Natural cooling |
| Case Material | Meta |
| Installation | Wall-mounted or floor-standing |
| IP Rating | IP 20 |
| Protective Class | I |

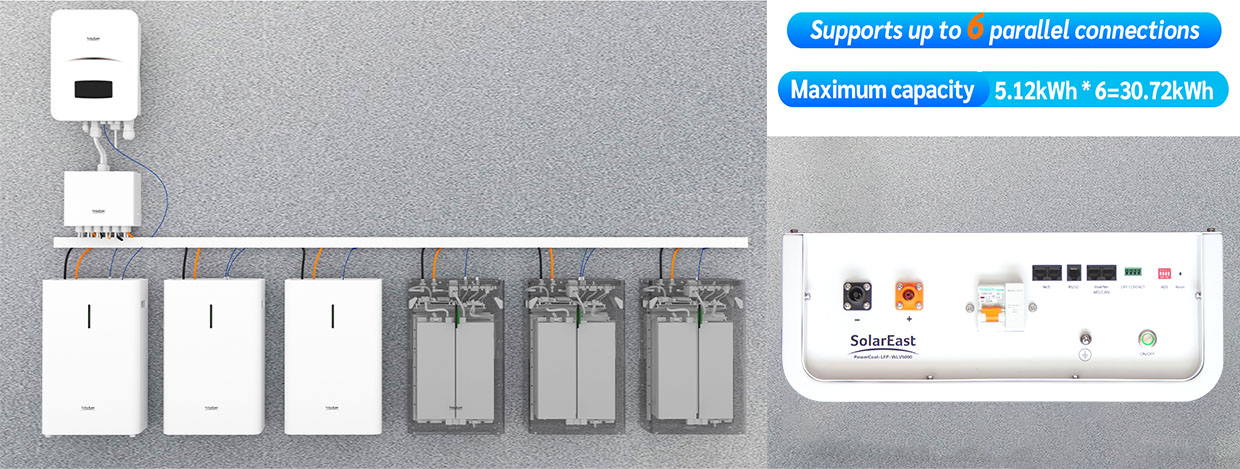

| Max.Connection Number | 6P |
| Communication | CAN/RS485 |
| Battery Protection | Over-current/Over-voltage/Short circuit Under-voltage/Over temperature |
| Certificates | CE, IEC62619, IEC61000, IEC62040, IEC63056, UN38.3, MSDS |
| Warranty | 10 years (5 free warranty + 5 paid warranty) |
FAQ
What is a Battery Energy Storage System (BESS)?
A.A.Battery energy storage system (BESS) is a technology that uses lithium-ion batteries as the core to achieve efficient storage and release of electrical energy through battery packs, management systems, and power conversion devices. It is mainly applied in power grid peak shaving, renewable energy integration, and distributed energy management, and has the characteristics of high energy density, fast response, and long cycle life.
What are the main advantages of BESS?
A.• High Energy Density: BESS can store large amounts of energy in relatively small footprints.
• Long-Duration Storage: They can provide power for hours, making them suitable for load shifting, peak shaving, or time-of-use management.
• Established Technology: Lithium-ion and related chemistries are mature, widely available, and backed by extensive industry experience.
• Versatility: BESS can serve multiple roles, from residential backup to utility-scale support.
What role can BESS play in frequency regulation?
A.By rapidly injecting or absorbing power, BESS can help maintain the grid’s frequency close to its nominal value (e.g., 50 Hz or 60 Hz). When there’s a mismatch between supply and demand, BESS can quickly respond to stabilize frequency.
What are the typical applications where supercapacitors might outperform BESS?
A.The core advantages of supercapacitors lie in their fast charging and discharging capabilities (completed in seconds), ultra long cycle life (over hundreds of thousands of cycles), wide temperature adaptability, and high safety (no chemical leakage risk). These characteristics make it significantly superior to traditional BESS in applications that require instantaneous power support, frequent charging and discharging, or extreme environments.
How do BESS compare to supercapacitors?
A.• Energy Density vs. Power Density: BESS offer higher energy density (store more energy per unit volume), while supercapacitors excel at delivering high power quickly.
• Cycle Life: Supercapacitors have a very long cycle life; batteries degrade more quickly over repeated cycles.
• Duration of Discharge: BESS is well-suited for longer-duration applications (minutes to hours), whereas supercapacitors are ideal for short, high-power bursts (seconds to minutes).
