Liquid Cooling vs Air Cooling in BESS: Which is Better for Your Project?

In Battery Energy Storage Systems (BESS), the choice between liquid cooling and air cooling directly impacts system safety, efficiency, lifespan, and total cost of ownership. The short answer is: liquid cooling is generally better for modern high-density, high-performance BESS applications, especially for C&I and utility-scale projects, while air cooling still works well for smaller, low-power, or cost-sensitive systems. Liquid cooling provides superior thermal control, enabling better battery performance, longer cycle life, and higher system integration density—making it the preferred solution for next-generation containerized ESS deployments.

Why Thermal Management Matters in BESS

Thermal management is one of the most critical design elements in energy storage systems. Lithium-ion batteries are highly sensitive to temperature fluctuations. Poor thermal control can lead to:

· Accelerated battery degradation

· Reduced cycle life

· Capacity loss over time

· Safety risks (thermal runaway in extreme cases)

· Uneven cell aging across battery packs

According to multiple industry studies (including reports from DNV GL Energy Transition Outlook and NREL battery safety research), maintaining a stable battery operating temperature range can improve cycle life by 20–40% and significantly reduce degradation rates in grid-scale storage systems.

This is why cooling strategy is no longer a secondary design choice—it is a core determinant of ESS performance and ROI.

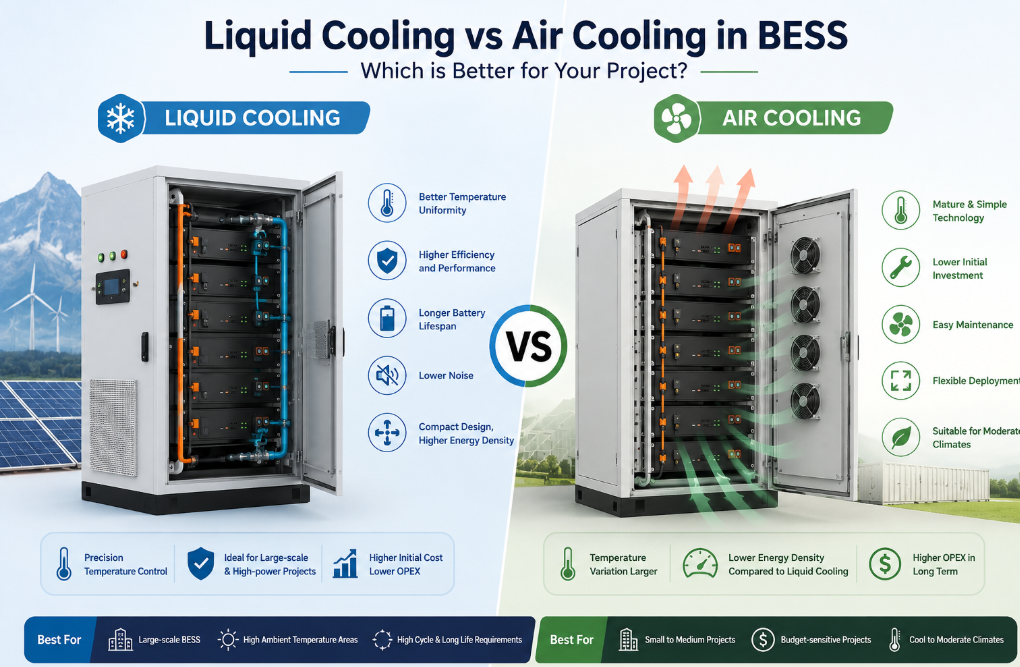

Liquid Cooling vs Air Cooling: Quick Comparison

What is Air Cooling in BESS?

Air cooling systems regulate battery temperature using forced air circulation. Fans push ambient or conditioned air through battery racks or modules to remove heat.

Advantages of Air Cooling

· Lower initial cost

· Simpler system design

· Easier maintenance

· Suitable for small-scale systems

Limitations of Air Cooling

· Less effective heat transfer

· Temperature gradients between cells

· Higher fan energy consumption at scale

· Limited scalability for large container systems

· Faster battery aging in high-load environments

Air cooling is still widely used in residential ESS and small commercial systems under ~100kWh–200kWh where heat load is relatively low.

What is Liquid Cooling in BESS?

Liquid cooling systems use a circulating coolant (usually glycol-water mixture) that flows through cold plates or cooling channels integrated into battery modules.

Heat is transferred from cells → cooling plates → coolant loop → heat exchanger.

Advantages of Liquid Cooling

· Precise temperature control

· Uniform thermal distribution across cells

· Higher system efficiency under load

· Better safety performance

· Supports high-density container ESS designs

· Extends battery cycle life

Why Liquid Cooling is Becoming Industry Standard

Modern ESS systems are increasing in energy density (e.g., 5MWh+ containers). As density increases, air cooling becomes insufficient.

Industry trend reports from BloombergNEF (BNEF) and IEA Energy Storage Tracking show that liquid-cooled ESS deployments are rapidly increasing in utility-scale and C&I markets due to improved lifecycle economics.

Performance Impact: Why Cooling Strategy Affects ROI

Cooling is not just a technical feature—it directly affects financial performance.

Key impact areas:

1. Battery Degradation Rate

· Liquid cooling reduces temperature peaks → slower degradation

· Air cooling allows hot spots → uneven aging

2. Cycle Life

Stable temperatures can extend usable battery life by thousands of cycles.

3. System Efficiency

Liquid cooling reduces auxiliary energy losses in large installations.

4. Safety & Insurance

Better thermal stability reduces fire risk probability, which can also influence insurance premiums for large ESS projects.

When Air Cooling is Still a Good Choice

Air cooling is still suitable when:

· Project scale is small (<200kWh)

· Budget is limited

· Low discharge frequency

· Residential or light commercial usage

· Simpler installation is preferred

In these cases, the lower upfront cost may outweigh long-term efficiency trade-offs.

When Liquid Cooling is the Better Choice

Liquid cooling is the preferred solution for:

· Commercial & Industrial ESS (C&I)

· Peak shaving applications

· Solar + storage hybrid systems

· Utility-scale BESS (MWh-level systems)

· High cycling frequency projects

· High ambient temperature environments

As ESS systems scale, thermal density increases, making liquid cooling not just better—but necessary.

Industry Trend: Liquid Cooling is Becoming the Default

The global ESS market is rapidly shifting toward:

· Higher energy density containers (3–6MWh per unit)

· Longer cycle life expectations (6,000–10,000 cycles)

· Stronger safety certification requirements (UL9540A, IEC standards)

· Lower levelized cost of storage (LCOS)

These trends strongly favor liquid-cooled architectures, especially in large-scale deployments.

SolarEast BESS Solutions: Advanced Liquid Cooling Integration

As a global energy storage manufacturer, SolarEast focuses on delivering high-performance liquid-cooled BESS solutions designed for commercial and utility applications.

SolarEast’s ESS portfolio includes:

· Liquid-cooled containerized energy storage systems (MWh-scale)

· Rack-mounted battery systems with integrated thermal management

· Smart BMS + EMS integrated control systems

· Modular designs from 100kWh to multi-MWh configurations

These systems are engineered to support:

· Peak shaving & load shifting

· Renewable energy integration

· Industrial backup power

· Microgrid and off-grid applications

By combining advanced liquid cooling technology with LFP battery chemistry, SolarEast systems deliver improved safety, longer lifecycle performance, and optimized total cost of ownership for global customers.

Final Verdict: Liquid Cooling vs Air Cooling

Liquid cooling is the better long-term solution for modern BESS, especially for C&I and utility-scale systems.

Choose liquid cooling if you need:

· High performance

· Long battery lifespan

· Large-scale deployment

· Better thermal stability

· Lower long-term operational cost

Choose air cooling if you need:

· Lower upfront investment

· Small-scale or residential ESS

· Simple system architecture
